J2456.0-24
J2456.0-24
J2456.0-24
J2456.0-24

J2456.0-24

UGC DOR6821345
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$224.71 CAD - $224.71 CAD
$224.71 CAD
$224.71 CAD - $224.71 CAD
$224.71 CAD

Vendu en lots de : 1

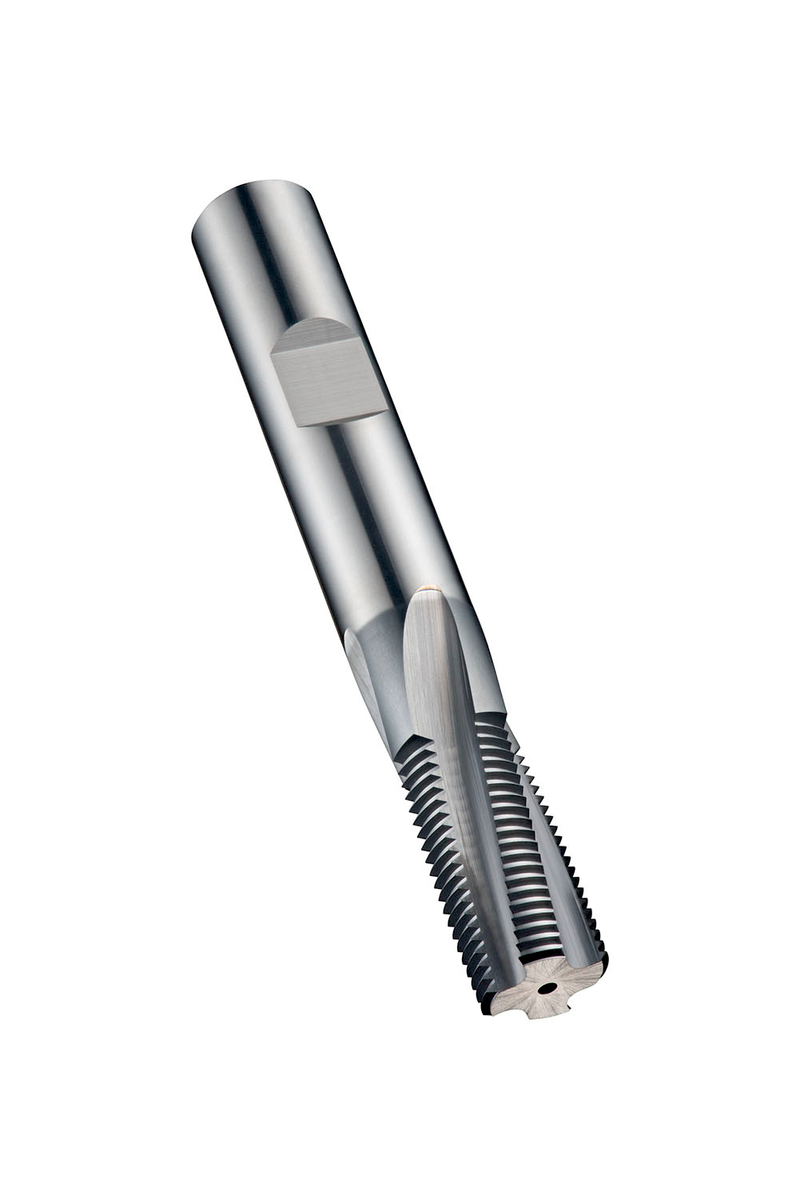

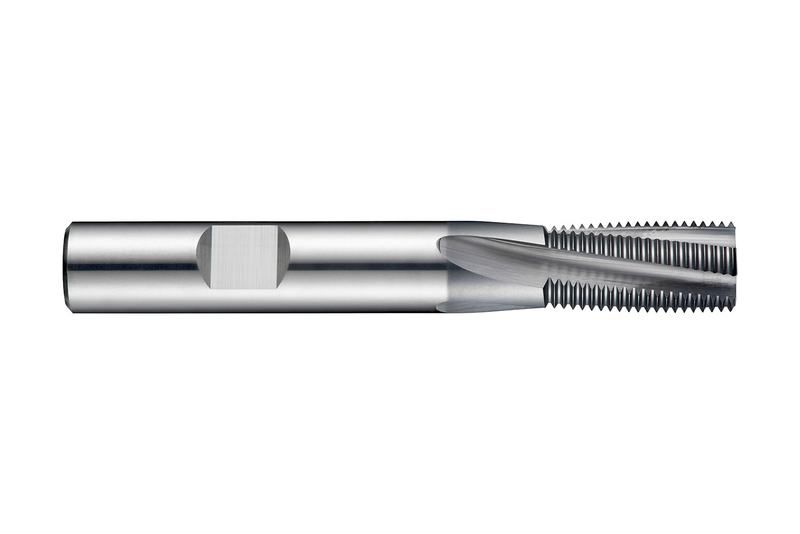

Fraise à fileter, pour filetage Unified National Fin ≥ UNF 5/16" avec 24 filets par pouce, dimensions selon la norme DORMER avec 3 goujures, diamètre de coupe de 6 mm et queue Weldon de 6 mm selon DIN 6535 HB, carbure monobloc avec revêtement Alcrona Pro, arrosage par l'intérieur et hélice de 10° pour l'usinage d'un filetage intérieur droit ou gauche d'une longueur maximale de 14 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J2456.0-24
GradeAlcrona Pro
Product Number6821345
Product FamilyJ245

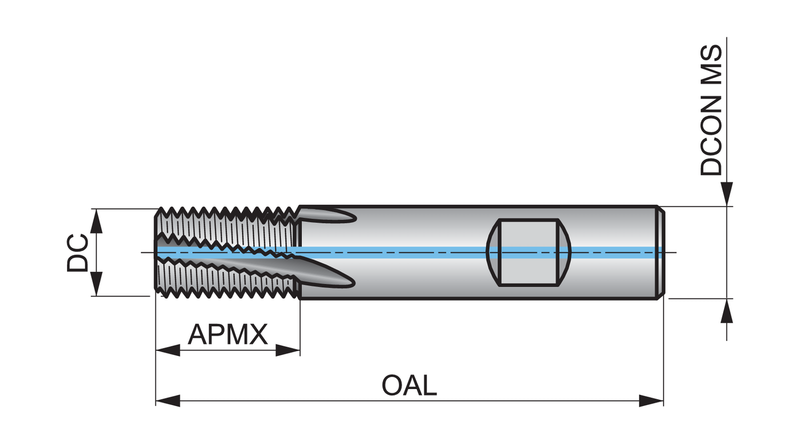

Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

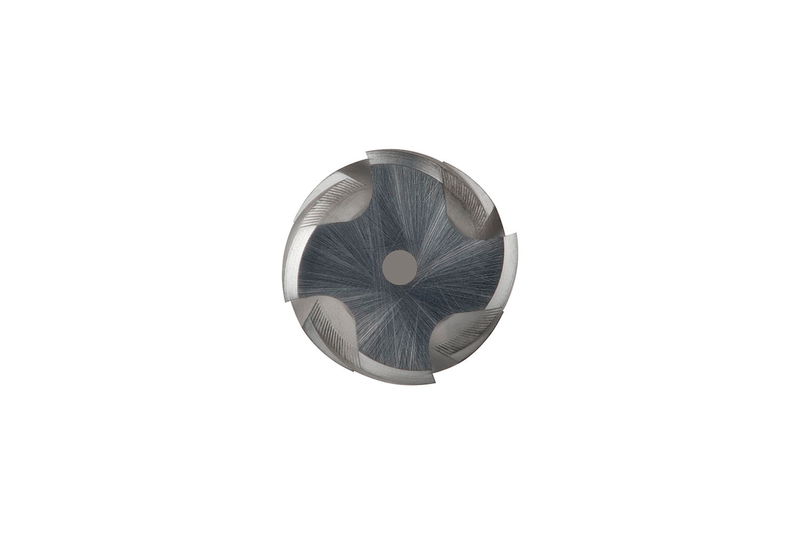

Number of Flutes (NOF)3
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)5/16, 3/8
Thread Form (THFT)UNF - Filetage fin unifié
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821345
EAN7320760689233
File Type Download
J2456.0-24 — Line Drawing PDF Download
