J26015.9-14
J26015.9-14
J26015.9-14

J26015.9-14

UGC DOR6821347
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$622.29 CAD - $622.29 CAD
$622.29 CAD
$622.29 CAD - $622.29 CAD
$622.29 CAD

Vendu en lots de : 1

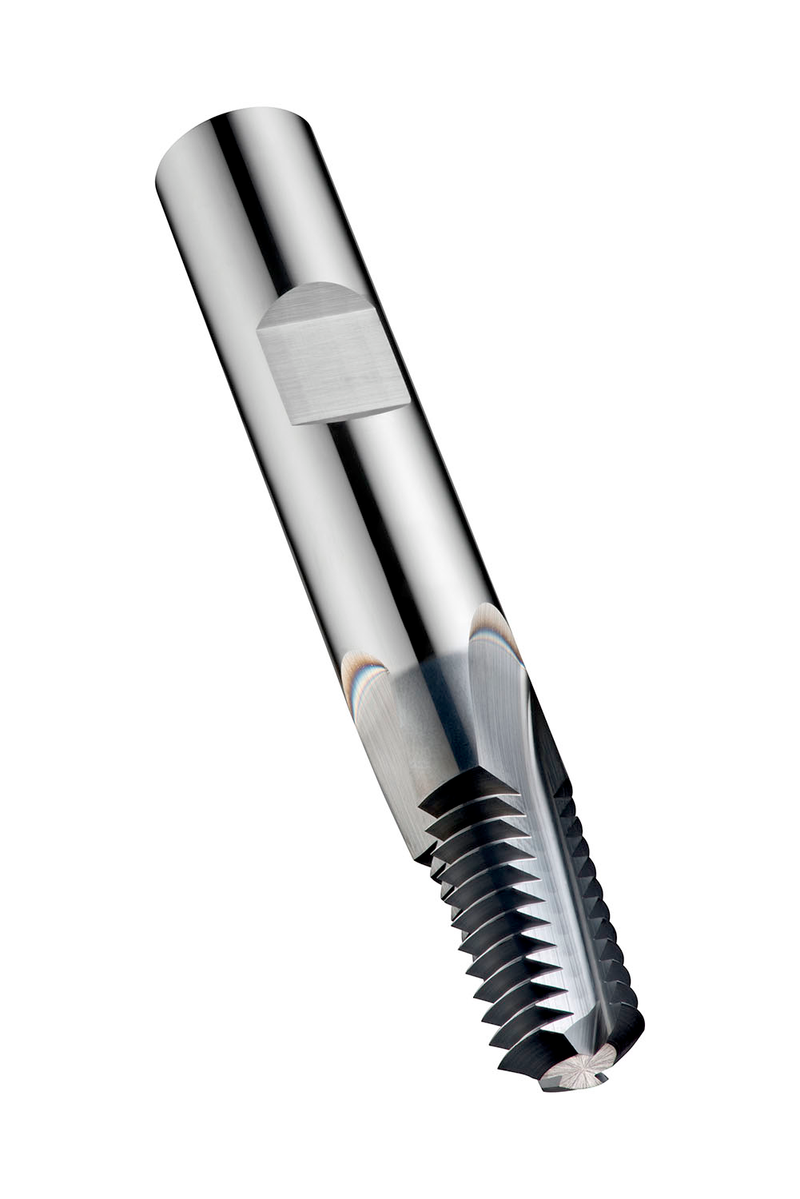

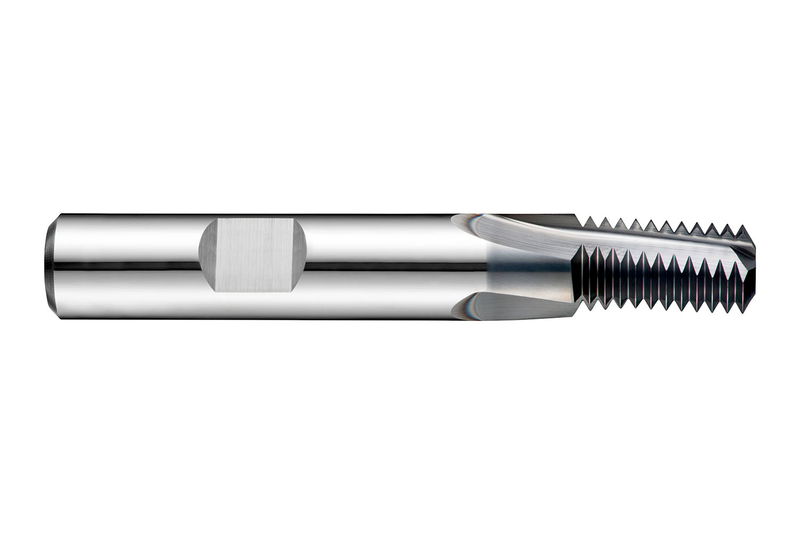

Fraises à fileter, pour filet conique National Pipe Taper ≥ NPT 1/2" avec 14 TPI, dimensions selon la norme DORMER avec 4 arêtes, diamètre de coupe de 15,9 mm et queue Weldon de 16 mm selon DIN 6535 HB, carbure monobloc avec revêtement Alcrona Pro et un angle d'hélice de 10° pour le fraisage d'un filetage intérieur droit ou gauche d'une longueur maximale de 20,46 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J26015.9-14
GradeAlcrona Pro
Product Number6821347
Product FamilyJ260
Insert Geometry

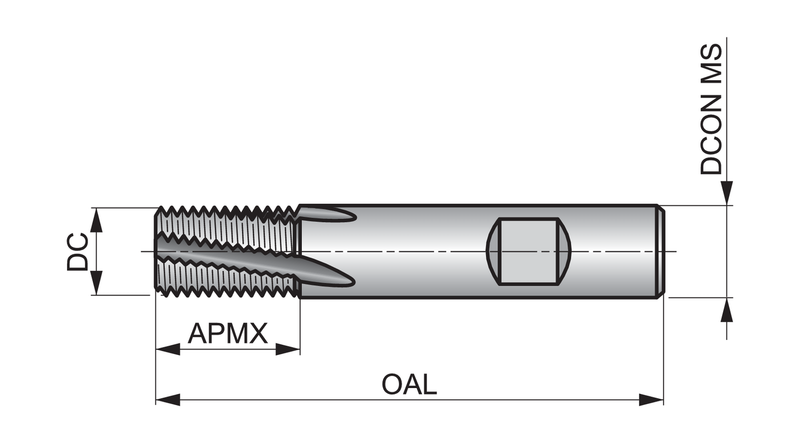

Depth of Cut Max — in (APMX)0.8055"
Depth of Cut Max — mm (APMX)20.46 mm
Dimensions
Cutting Diameter — in (DC)0.626"
Cutting Diameter — mm (DC)15.9 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)1/2, 3/4
Thread Form (THFT)NPT - National Pipe Taper
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique DIN 6535 HB
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number46821347
EAN7320760689257
File Type Download
J26015.9-14 — Line Drawing PDF Download
