J2806.0-28
J2806.0-28
J2806.0-28

J2806.0-28

UGC DOR6821356
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.14 CAD - $212.14 CAD
$212.14 CAD
$212.14 CAD - $212.14 CAD
$212.14 CAD

Vendu en lots de : 1

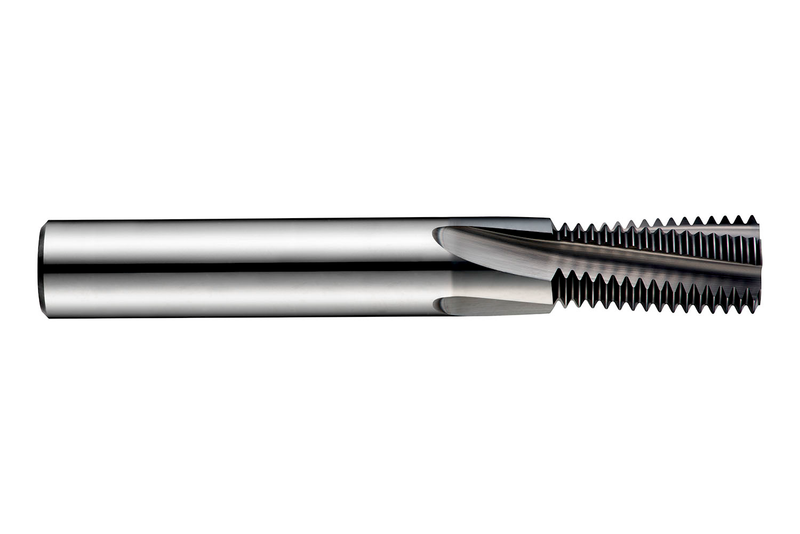

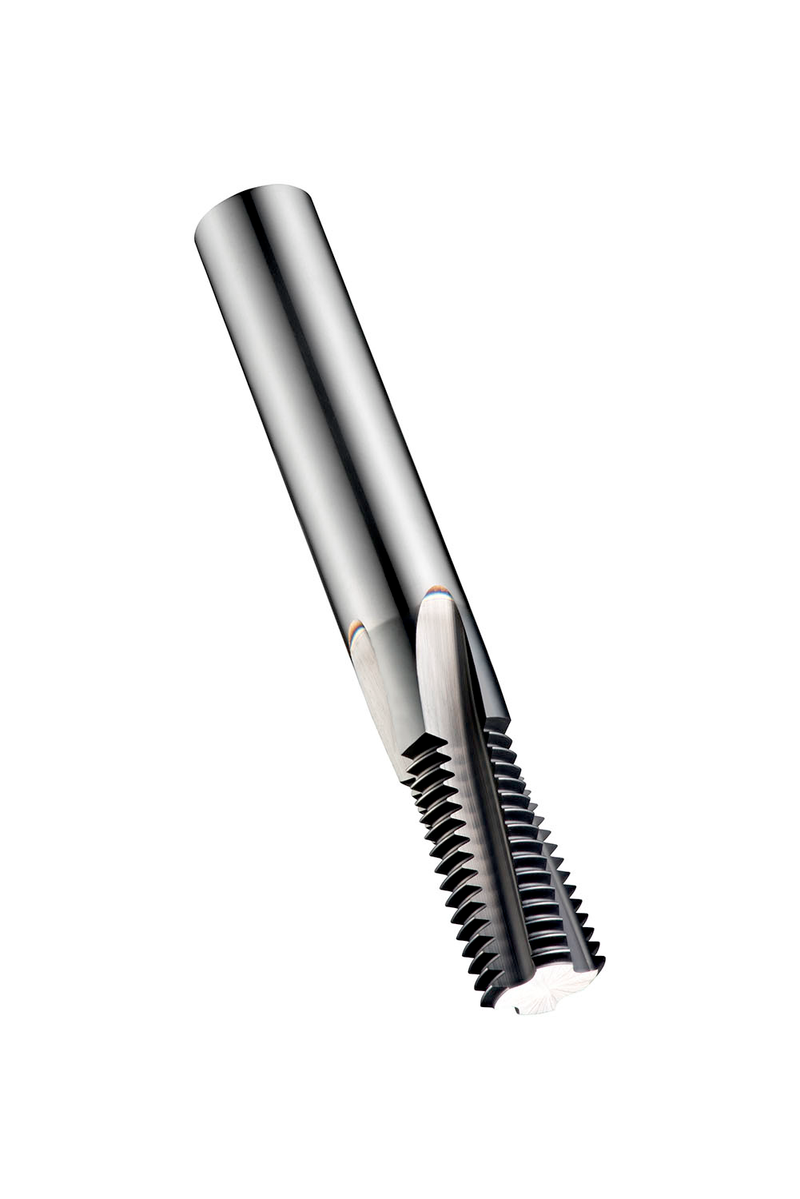

Fraise à fileter, pour filetage de tuyauterie britannique ≥ G 1/8" avec 28 filets par pouce, dimensions selon la norme DORMER à 3 dents, diamètre de coupe de 6 mm et queue cylindrique de 6 mm selon DIN 6535 HA, carbure monobloc avec revêtement Alcrona Pro et angle d'hélice de 10° pour le fraisage d'un filetage intérieur et extérieur droit ou gauche d'une longueur maximale de 15 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J2806.0-28
GradeAlcrona Pro
Product Number6821356
Product FamilyJ280
Insert Geometry

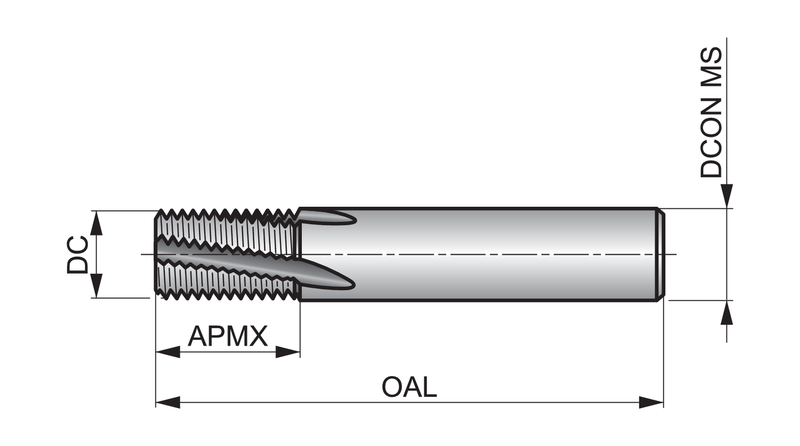

Depth of Cut Max — in (APMX)0.5906"
Depth of Cut Max — mm (APMX)15.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)10.0°
Threading
Thread Diameter Size (TDZ)1/8
Thread Form (THFT)G - Raccord de tuyauterie standard britannique - Série G
Threads per Inch (TPI)28.0
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number46821356
EAN7320760689349
File Type Download
J2806.0-28 — Line Drawing PDF Download
