UGC DOR6827937
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$588.00 CAD - $588.00 CAD
$588.00 CAD
$588.00 CAD - $588.00 CAD
$588.00 CAD

Vendu en lots de : 1

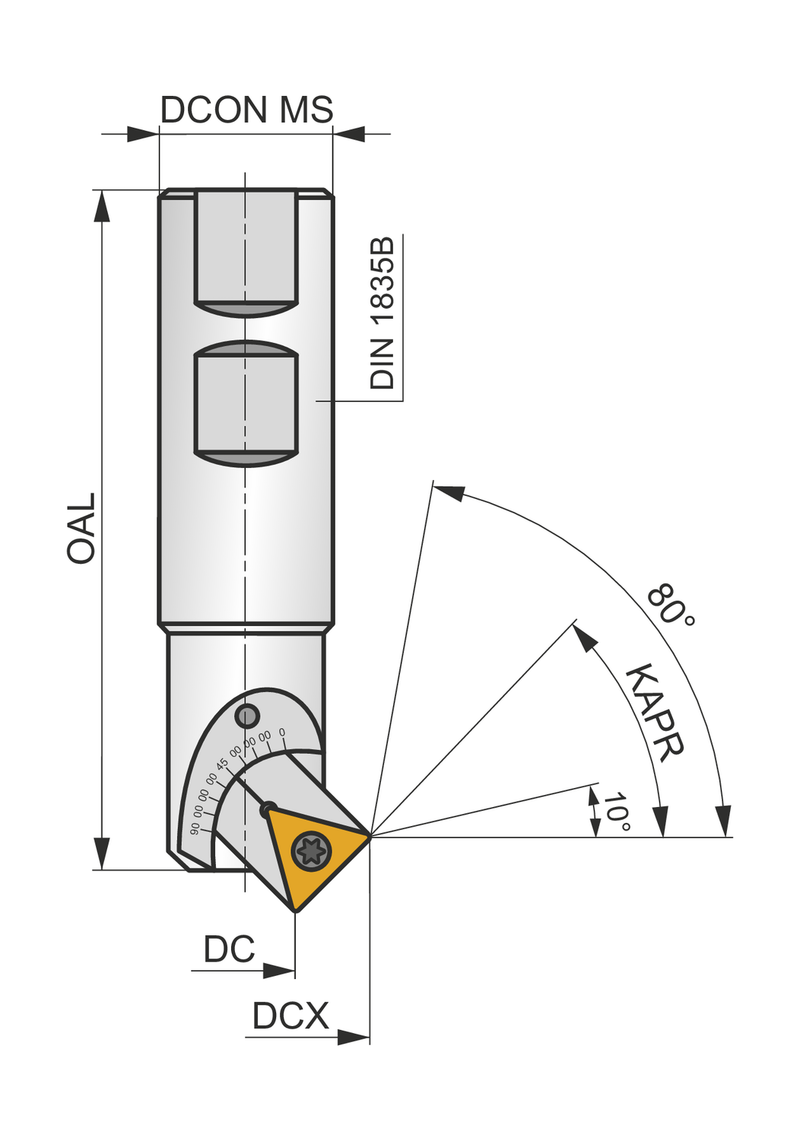

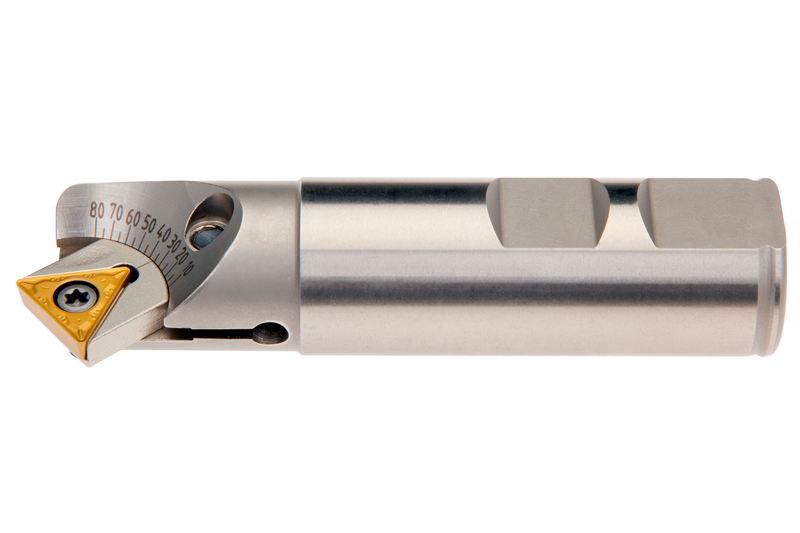

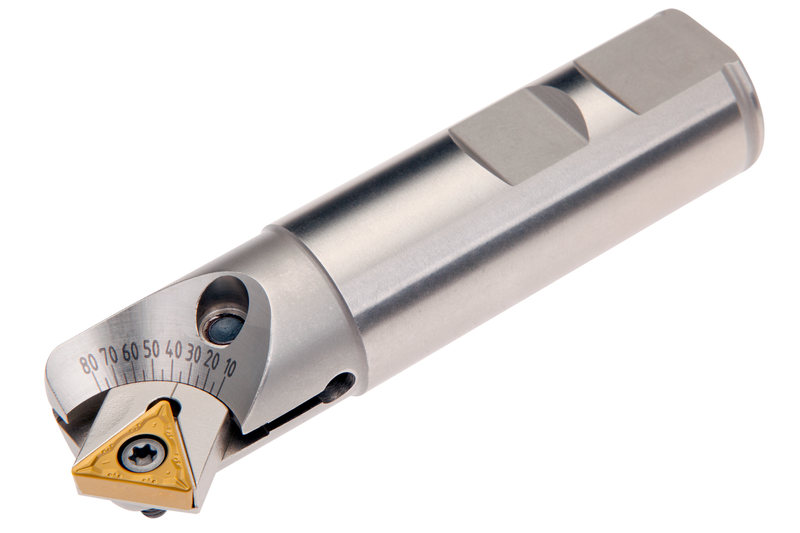

Fraise à chanfreiner à géométrie doublement négative qui utilise 1 plaquette simple face TCMT 16T304E-FM:T83.. ou TCMT 16T308E-FM:T83.., diamètre de coupe de 5 à 31 mm maximum avec un angle d'attaque de 10 à 80° et une queue Weldon de 25 mm selon DIN 1835B, longueur totale de 100 mm pour le chanfreinage avec une profondeur de coupe maximale de 8,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI)25/05/2636
Product Name (ISO)2636-05-25
Product Number6827937
Product Family2636
Insert Geometry
Depth of Cut Max — mm (APMX)8.5 mm
Dimensions
Cutting Diameter — in (DC)0.197"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)1
Tool Information
Tool Design2636
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Reference Numbers
EDP Number6827937
EAN3603603006089
File Type Download
25/05/2636 — 3D Model STP Download
25/05/2636 — 2D Model DXF Download
25/05/2636 — Line Drawing PDF Download
