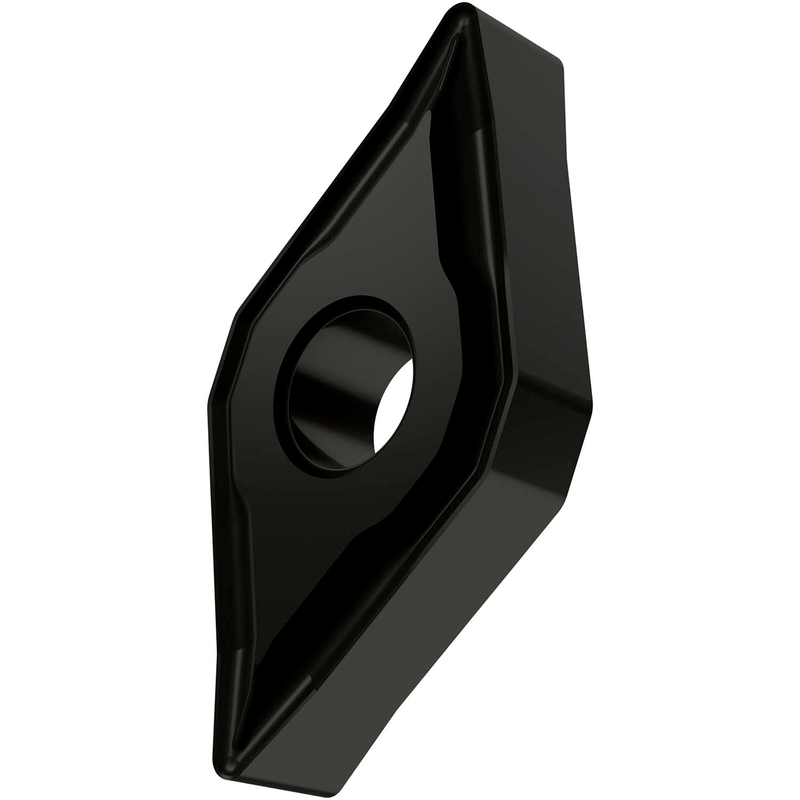

DNMG 332-NF:T9325
DNMG 332-NF:T9325

DNMG 332-NF:T9325

UGC DOR6834670
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.69 CAD - $20.69 CAD
$20.69 CAD
$20.69 CAD - $20.69 CAD
$20.69 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de diamètre 3/8", épaisseur 3/16", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 332-NF:T9325
Product Name (ISO)DNMG 110408E-NF:T9325
GradeT9325
Chipbreaker (CBMD)NF
Product Number6834670
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834670
EAN3603603012325
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
DNMG 332-NF:T9325 — Line Drawing PDF Download
