DNMG 431-NF:T7335
DNMG 431-NF:T7335

DNMG 431-NF:T7335

UGC DOR6834671
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.61 CAD - $20.61 CAD
$20.61 CAD
$20.61 CAD - $20.61 CAD
$20.61 CAD

Vendu en lots de : 10

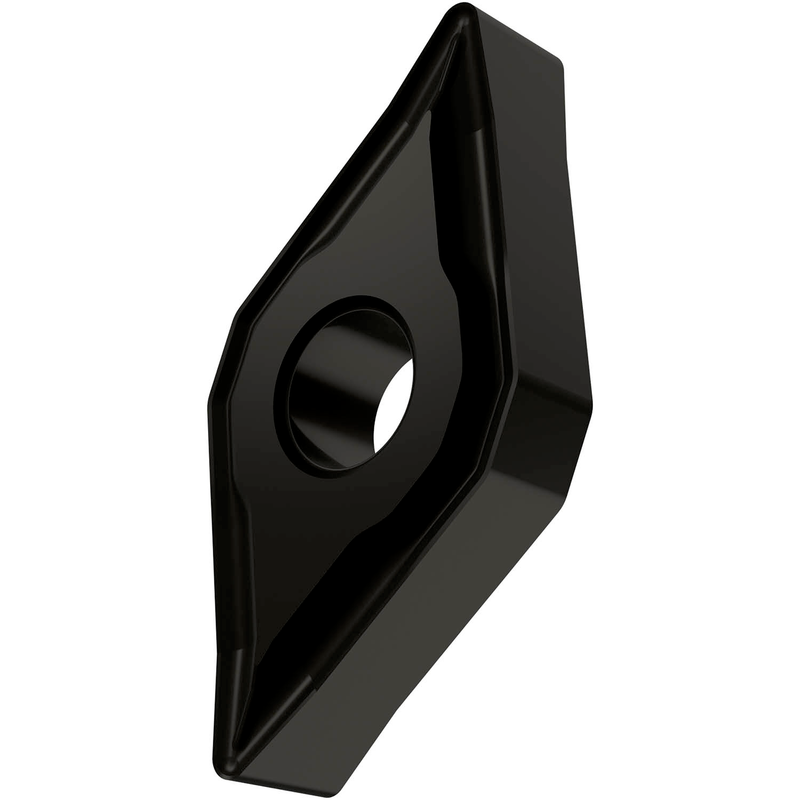

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 12,7 mm de diamètre, 4,76 mm d'épaisseur, rayon de pointe de 0,4 mm et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NF, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO M20-M40, pour l'usinage de finition à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 431-NF:T7335
Product Name (ISO)DNMG 150404E-NF:T7335
GradeT7335
Chipbreaker (CBMD)NF
Product Number6834671
Product FamilyDNGM
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle d'ouverture rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834671
EAN3603603012332
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
DNMG 431-NF:T7335 — Line Drawing PDF Download
