DNMG 431-NF:T9325
DNMG 431-NF:T9325

DNMG 431-NF:T9325

UGC DOR6834674
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.61 CAD - $20.61 CAD
$20.61 CAD
$20.61 CAD - $20.61 CAD
$20.61 CAD

Vendu en lots de : 10

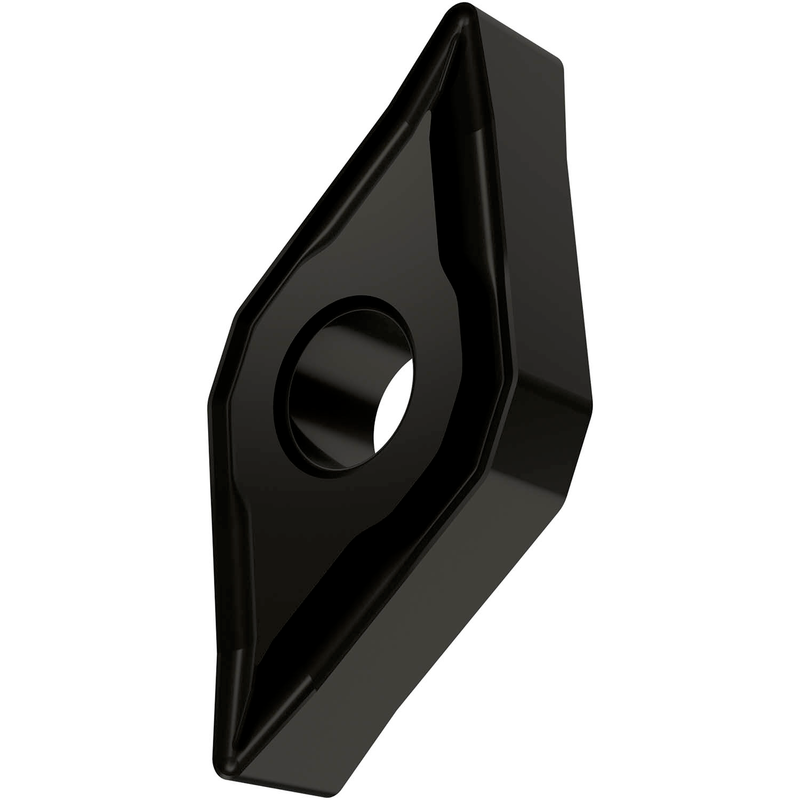

Plaquette négative double face, rhomboïde 55° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 431-NF:T9325
Product Name (ISO)DNMG 150404E-NF:T9325
GradeT9325
Chipbreaker (CBMD)NF
Product Number6834674
Product FamilyDNMG

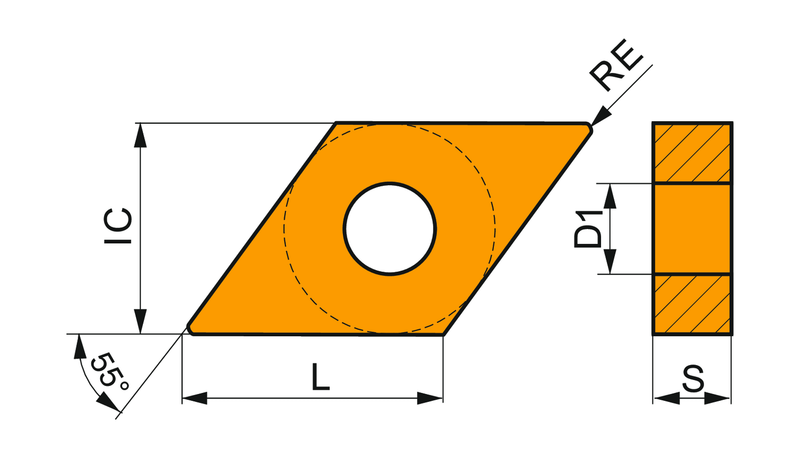

Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle interne de 55° pour un losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834674
EAN3603603012363
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
DNMG 431-NF:T9325 — Line Drawing PDF Download
