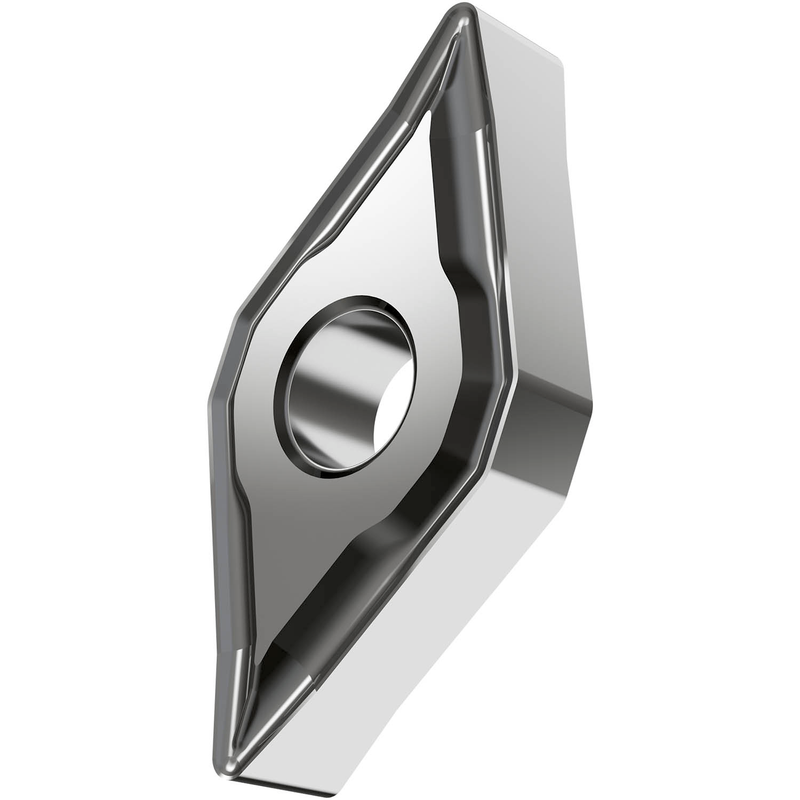

DNMG 441-NF:HF7
DNMG 441-NF:HF7

DNMG 441-NF:HF7

UGC DOR6834679
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.71 CAD - $16.71 CAD
$16.71 CAD
$16.71 CAD - $16.71 CAD
$16.71 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 1/2" de diamètre, 1/4" d'épaisseur, rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance HF7, un carbure WC-Co à grain fin non revêtu, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441-NF:HF7
Product Name (ISO)DNMG 150604E-NF:HF7
GradeHF7
Chipbreaker (CBMD)NF
Product Number6834679
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle fermé rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834679
EAN3603603012417
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
DNMG 441-NF:HF7 — Line Drawing PDF Download
