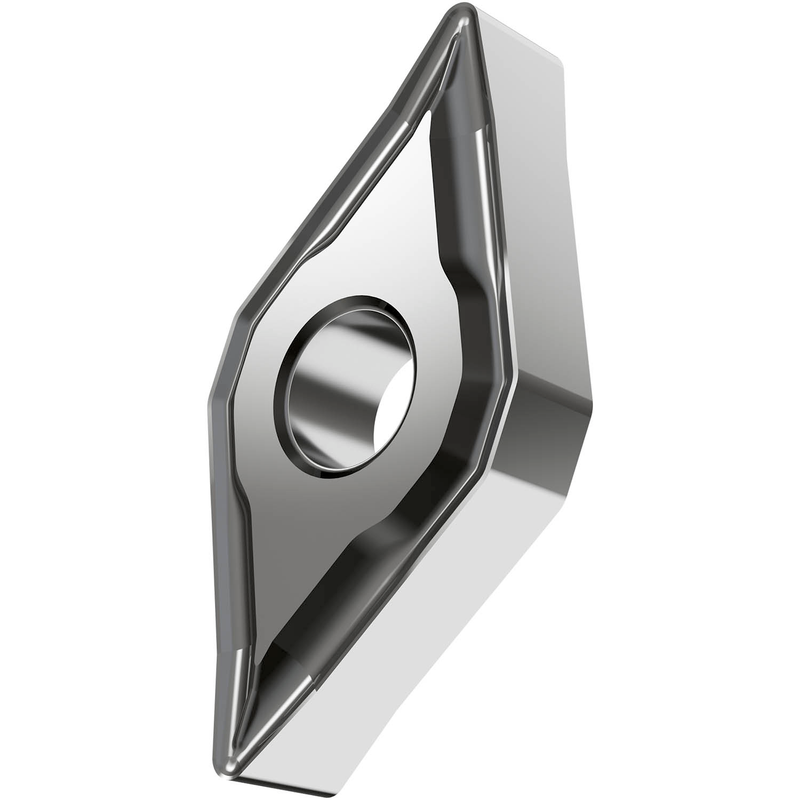

DNMG 442-NF:HF7
DNMG 442-NF:HF7

DNMG 442-NF:HF7

UGC DOR6834685
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.71 CAD - $16.71 CAD
$16.71 CAD
$16.71 CAD - $16.71 CAD
$16.71 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec diamètre de cercle inscrit de 1/2", épaisseur de 1/4", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO- M, brise-copeaux NF, en nuance HF7, un carbure WC-Co non revêtu à grain fin, pour usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 442-NF:HF7
Product Name (ISO)DNMG 150608E-NF:HF7
GradeHF7
Chipbreaker (CBMD)NF
Product Number6834685
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle compris rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834685
EAN3603603012479
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
DNMG 442-NF:HF7 — Line Drawing PDF Download
