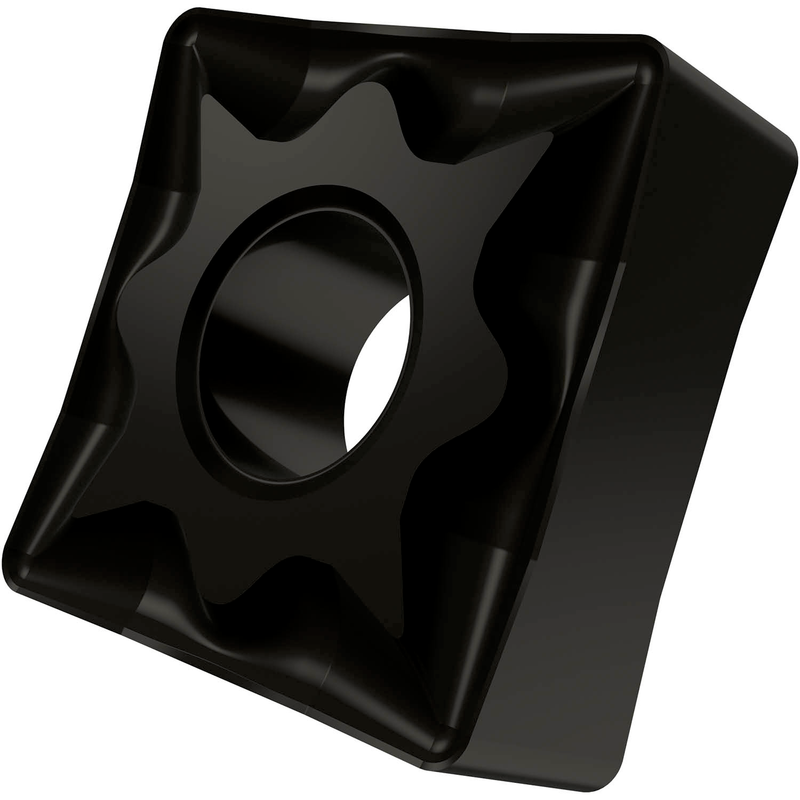

SNMG 431-NF:T9325
SNMG 431-NF:T9325

SNMG 431-NF:T9325

UGC DOR6834697
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette négative double-face, carrée avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, un rayon de bec de 1/64" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 431-NF:T9325
Product Name (ISO)SNMG 120404E-NF:T9325
GradeT9325
Chipbreaker (CBMD)NF
Product Number6834697
Product FamilySNMG
Insert Geometry
Insert DesignGNNM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834697
EAN3603603012592
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download
SNMG 431-NF:T9325 — Line Drawing PDF Download
