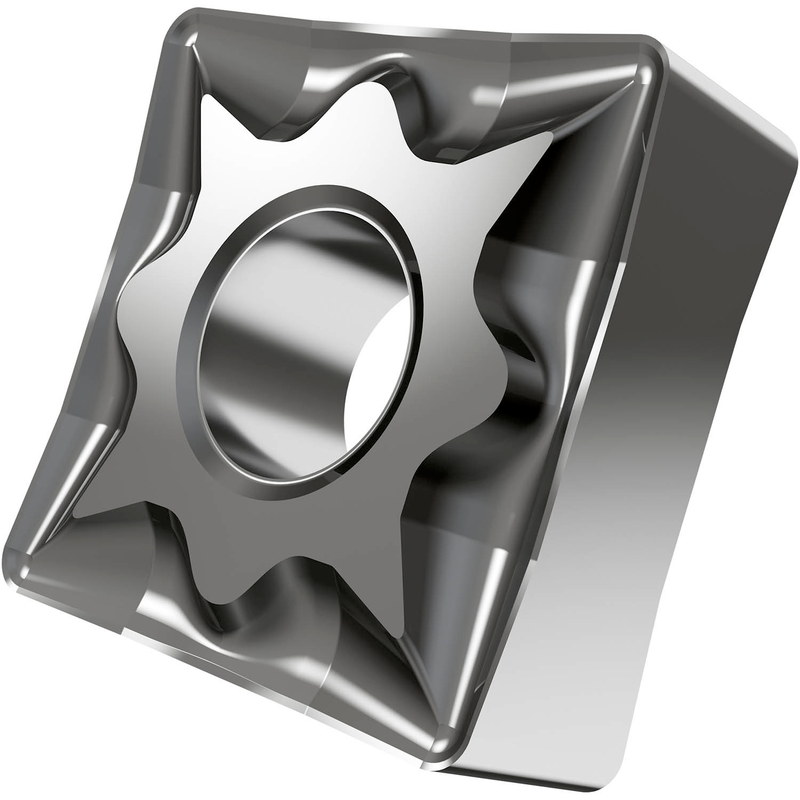

SNMG 432-NF:HF7
SNMG 432-NF:HF7

SNMG 432-NF:HF7

UGC DOR6834698
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.19 CAD - $10.19 CAD
$10.19 CAD
$10.19 CAD - $10.19 CAD
$10.19 CAD

Vendu en lots de : 10

Insert de tournage négatif double face, carré avec cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NF, en nuance HF7, un carbure WC-Co à grain fin non revêtu, pour usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-NF:HF7
Product Name (ISO)SNMG 120408E-NF:HF7
GradeHF7
Chipbreaker (CBMD)NF
Product Number6834698
Product FamilySNMG
Insert Geometry
Insert DesignGEAM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6834698
EAN3603603012608
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
SNMG 432-NF:HF7 — Line Drawing PDF Download
