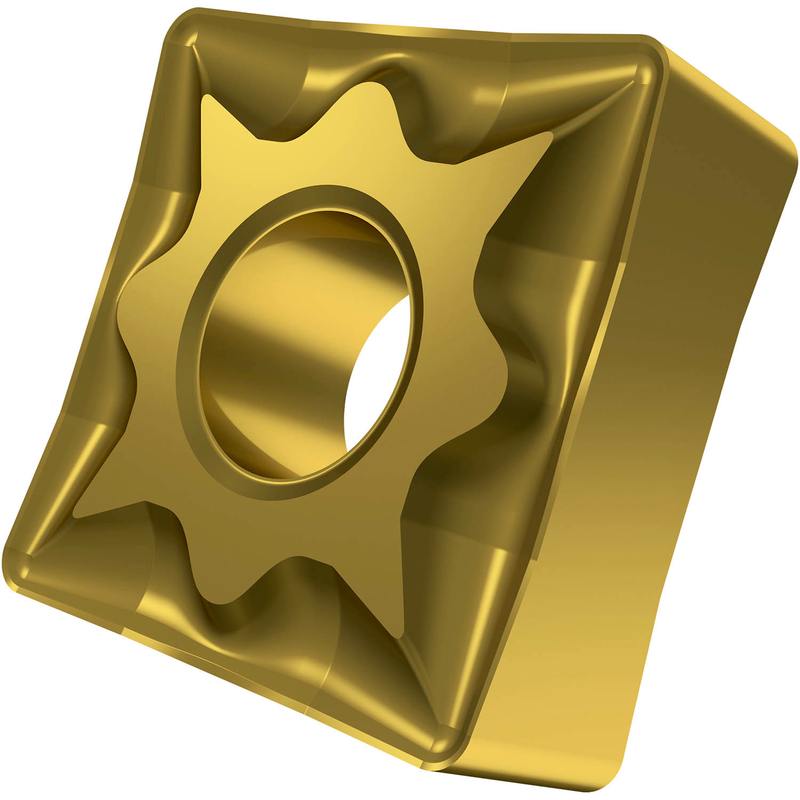

SNMG 432-NF:T8315
SNMG 432-NF:T8315

SNMG 432-NF:T8315

UGC DOR6834700
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec diamètre du cercle inscrit de 1/2", épaisseur 3/16", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T8315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M05-M20, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-NF:T8315
Product Name (ISO)SNMG 120408E-NF:T8315
GradeT8315
Chipbreaker (CBMD)NF
Product Number6834700
Product FamilySNMG
Insert Geometry
Insert DesignGNPM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6834700
EAN3603603012622
