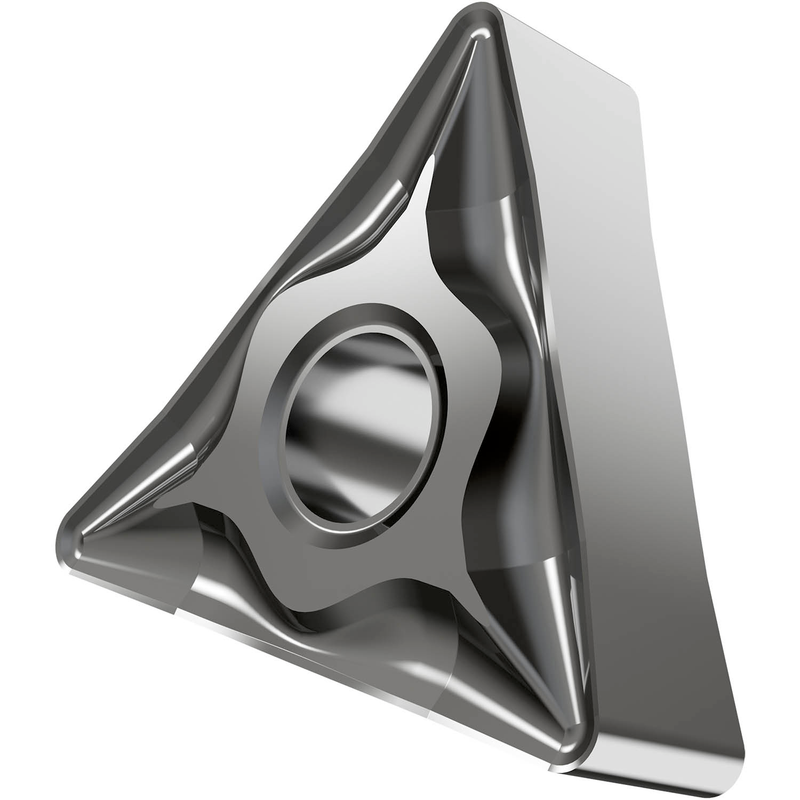

TNMG 331-NF:HF7
TNMG 331-NF:HF7

TNMG 331-NF:HF7

UGC DOR6834704
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.71 CAD - $8.71 CAD
$8.71 CAD
$8.71 CAD - $8.71 CAD
$8.71 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/64" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NF, en nuance HF7, un carbure WC-Co à grain fin non revêtu, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331-NF:HF7
Product Name (ISO)TNMG 160404E-NF:HF7
GradeHF7
Chipbreaker (CBMD)NF
Product Number6834704
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834704
EAN3603603012660
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
TNMG 331-NF:HF7 — Line Drawing PDF Download
