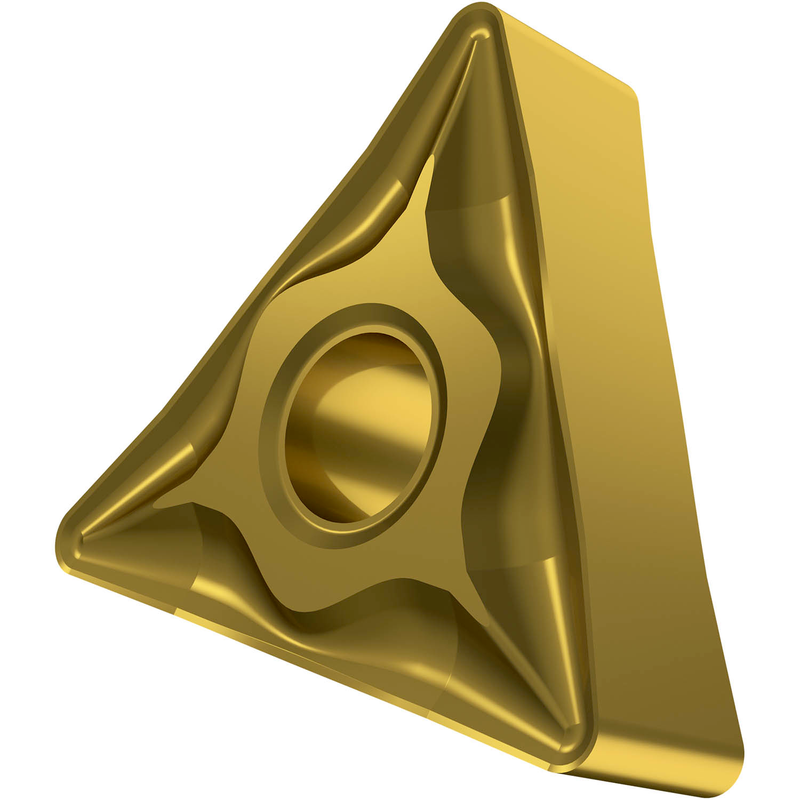

TNMG 331-NF:T8315
TNMG 331-NF:T8315

TNMG 331-NF:T8315

UGC DOR6834706
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T8315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M05-M20, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331-NF:T8315
Product Name (ISO)TNMG 160404E-NF:T8315
GradeT8315
Chipbreaker (CBMD)NF
Product Number6834706
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834706
EAN3603603012684
File Type Download
TNMG 331-NF:T8315 — Line Drawing PDF Download
