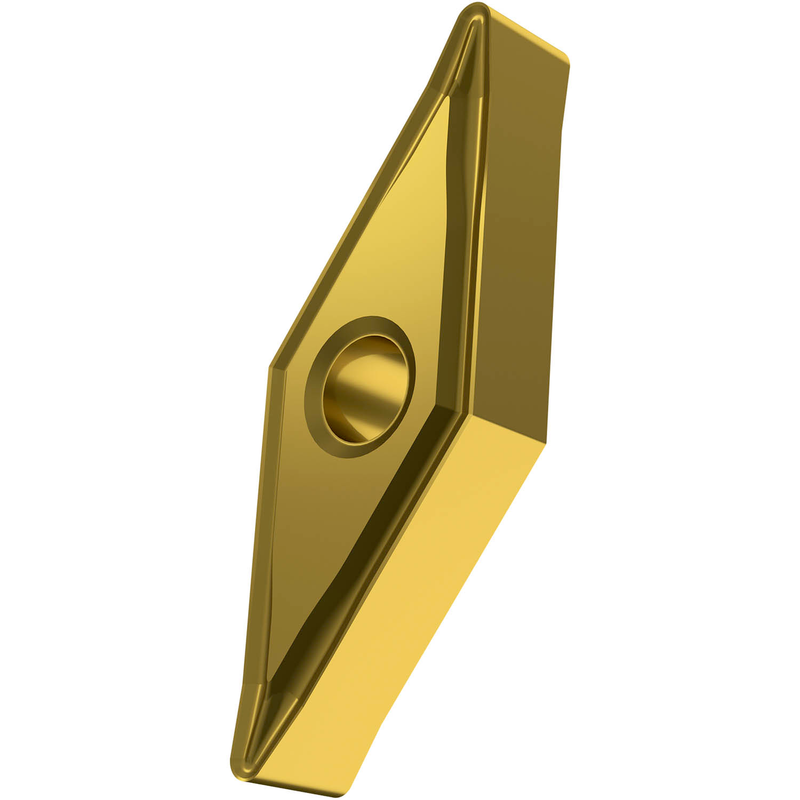

VNMG 332-NF:T8315
VNMG 332-NF:T8315

VNMG 332-NF:T8315

UGC DOR6834722
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 35° avec un diamètre du cercle inscrit de 3/8", 3/16" d'épaisseur, un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF, en nuance T8315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M05-M20, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 332-NF:T8315
Product Name (ISO)VNMG 160408E-NF:T8315
GradeT8315
Chipbreaker (CBMD)NF
Product Number6834722
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle inclus rhombique de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834722
EAN3603603012844
File Type Download
VNMG 332-NF:T8315 — Line Drawing PDF Download
