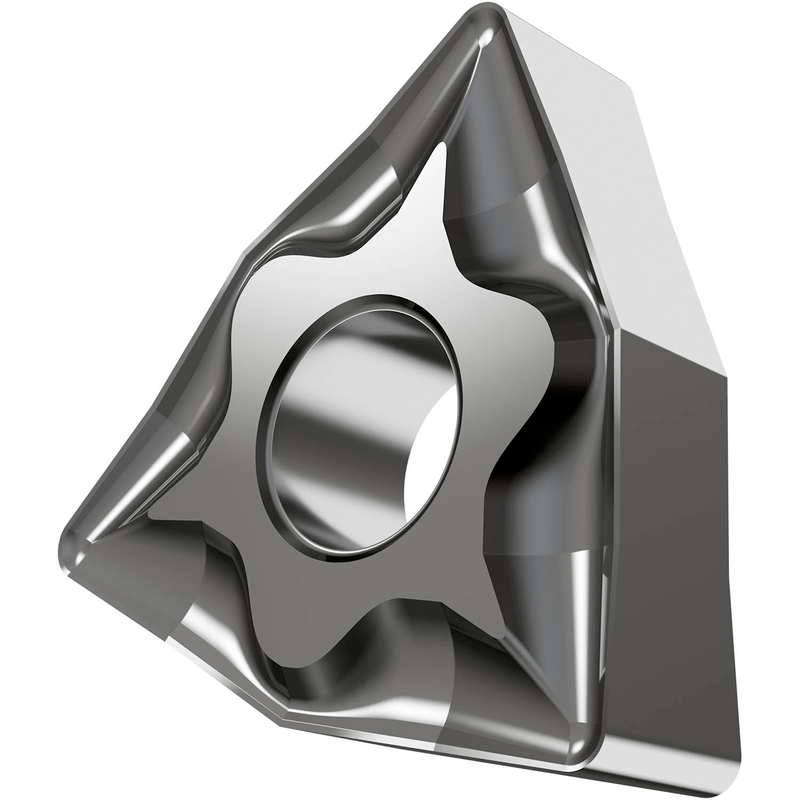

WNMG 431-NF:HF7
WNMG 431-NF:HF7

WNMG 431-NF:HF7

UGC DOR6834734
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.40 CAD - $10.40 CAD
$10.40 CAD
$10.40 CAD - $10.40 CAD
$10.40 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, trigon de 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NF, en nuance HF7, un carbure WC-Co à grains fins non revêtu, pour usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 431-NF:HF7
Product Name (ISO)WNMG 080404E-NF:HF7
GradeHF7
Chipbreaker (CBMD)NF
Product Number6834734
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigonometrie
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6834734
EAN3603603012967
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
WNMG 431-NF:HF7 — Line Drawing PDF Download
