RPEW 1204MOSN:M8340
RPEW 1204MOSN:M8340

RPEW 1204MOSN:M8340

UGC DOR6835886
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.29 CAD - $19.29 CAD
$19.29 CAD
$19.29 CAD - $19.29 CAD
$19.29 CAD

Vendu en lots de : 10

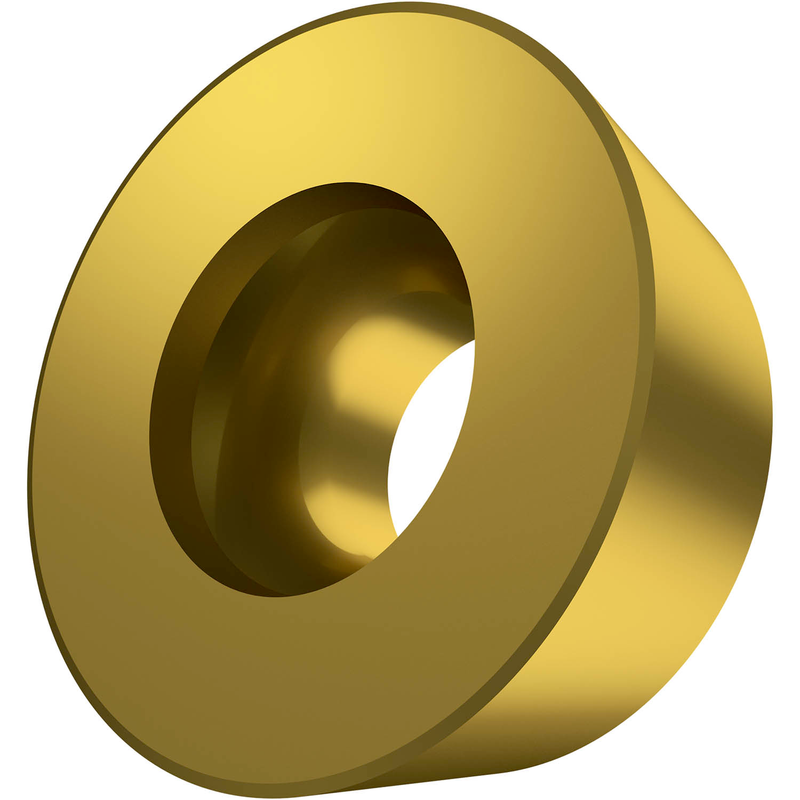

Plaquette de fraisage simple face RPEW 1204 à surface de coupe plane, ronde pour une profondeur de coupe maximale de 3 mm, avec rayon de coin, une précision de positionnement selon la classe de tolérance ISO-E avec des arêtes de coupe et facettes arrondies, en carbure WC-Co à grain fin revêtu PVD M8340

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RPEW 1204MOSN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6835886
Product FamilyRPEW 12
Insert Geometry
Insert DesignRPEW
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6835886
EAN3603603011120
File Type Download

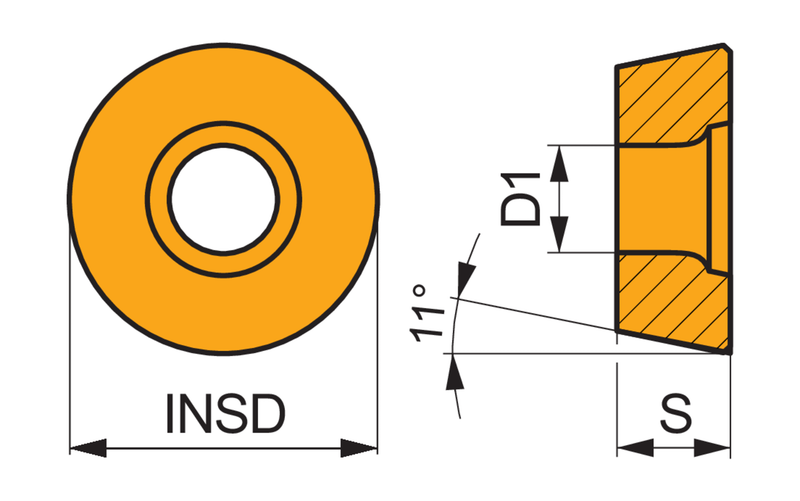

RPEW 1204MOSN:M8340 — Line Drawing PDF Download
