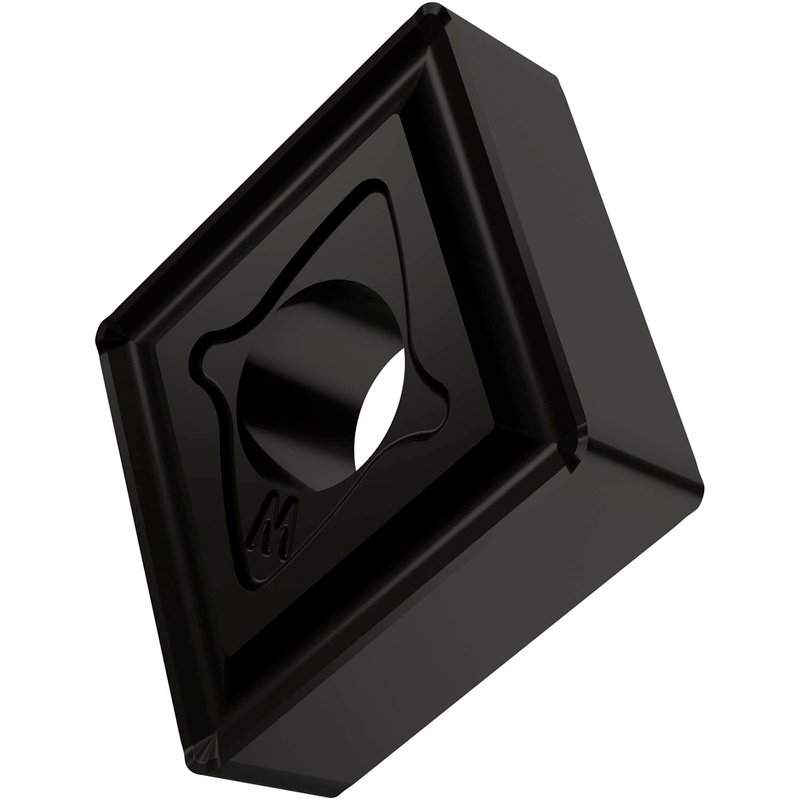

CNMG 432W-MR:T9325
CNMG 432W-MR:T9325

CNMG 432W-MR:T9325

UGC DOR6850881
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.79 CAD - $15.79 CAD
$15.79 CAD
$15.79 CAD - $15.79 CAD
$15.79 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32", précision de positionnement selon la classe de tolérance ISO M, brise-copeaux MR avec conception à arête de type WIPER, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432W-MR:T9325
Product Name (ISO)CNMG 120408W-MR:T9325
GradeT9325
Chipbreaker (CBMD)W-MR
Product Number6850881
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6850881
EAN3603603033054
File Type Download
CNMG 432W-MR:T9325 — Line Drawing PDF Download
