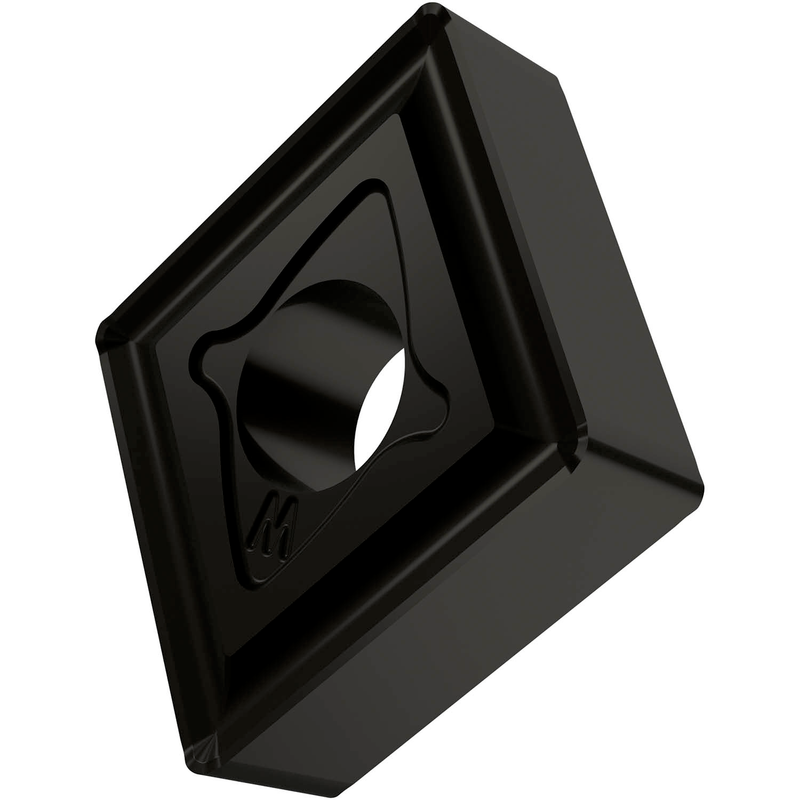

CNMG 433W-MR:T5315
CNMG 433W-MR:T5315

CNMG 433W-MR:T5315

UGC DOR6850882
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.79 CAD - $15.79 CAD
$15.79 CAD
$15.79 CAD - $15.79 CAD
$15.79 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de pointe de 3/64", précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux MR avec conception de bord WIPER, en nuance T5315, un carbure WC-Co revêtu MT-CVD, pour l'usinage moyen à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433W-MR:T5315
Product Name (ISO)CNMG 120412W-MR:T5315
GradeT5315
Chipbreaker (CBMD)W-Mme
Product Number6850882
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6850882
EAN3603603033061
File Type Download
CNMG 433W-MR:T5315 — Line Drawing PDF Download
