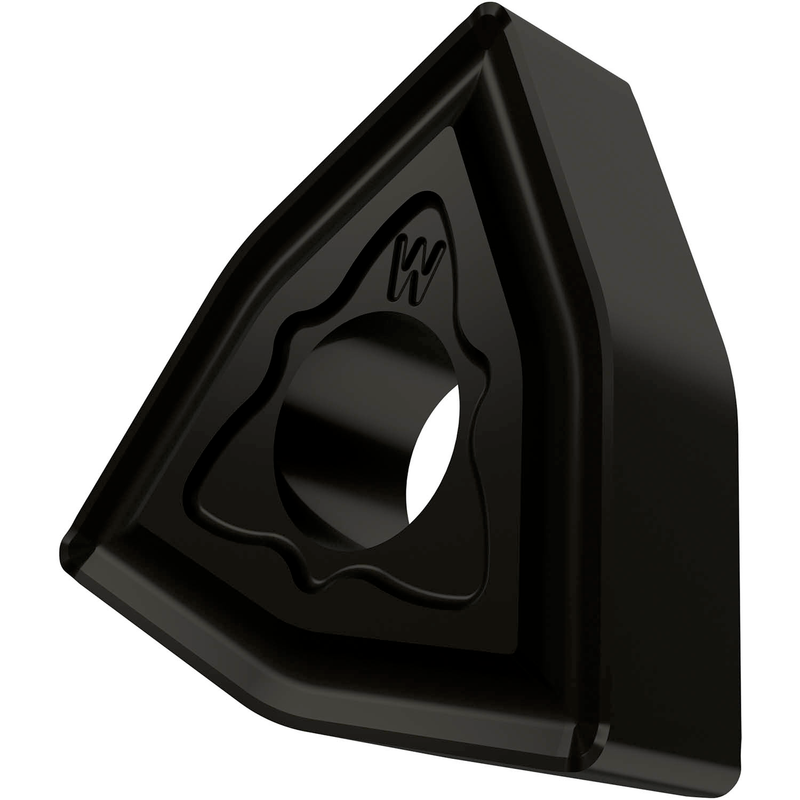

WNMG 433W-MR:T5315
WNMG 433W-MR:T5315

WNMG 433W-MR:T5315

UGC DOR6850896
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.43 CAD - $15.43 CAD
$15.43 CAD
$15.43 CAD - $15.43 CAD
$15.43 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, trigon 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64", précision d'indexage selon la classe de tolérance ISO M, brise-copeaux MR avec arête WIPER, en nuance T5315, un carbure WC-Co revêtu MT-CVD, pour usinage moyen à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433W-MR:T5315
Product Name (ISO)WNMG 080412W-MR:T5315
GradeT5315
Chipbreaker (CBMD)O-M.R.
Product Number6850896
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6850896
EAN3603603033207
File Type Download
WNMG 433W-MR:T5315 — Line Drawing PDF Download
