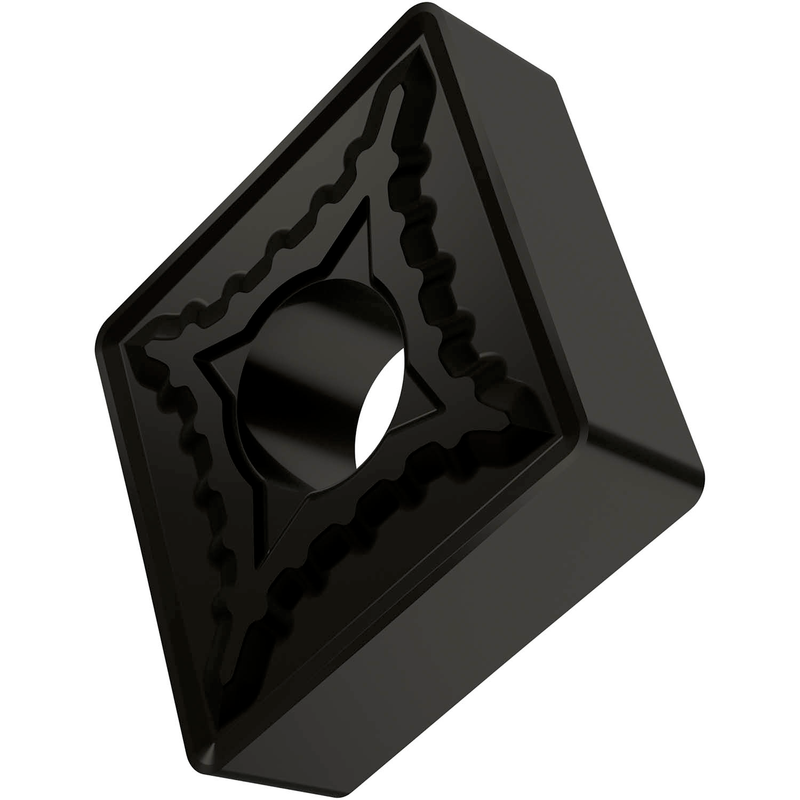

CNMG 433-SM:T9325
CNMG 433-SM:T9325

CNMG 433-SM:T9325

UGC DOR6915805
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre du cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage de finition à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-SM:T9325
Product Name (ISO)CNMG 120412E-SM:T9325
GradeT9325
Chipbreaker (CBMD)SM
Product Number6915805
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6915805
EAN3603603069152
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 433-SM:T9325 — Line Drawing PDF Download
