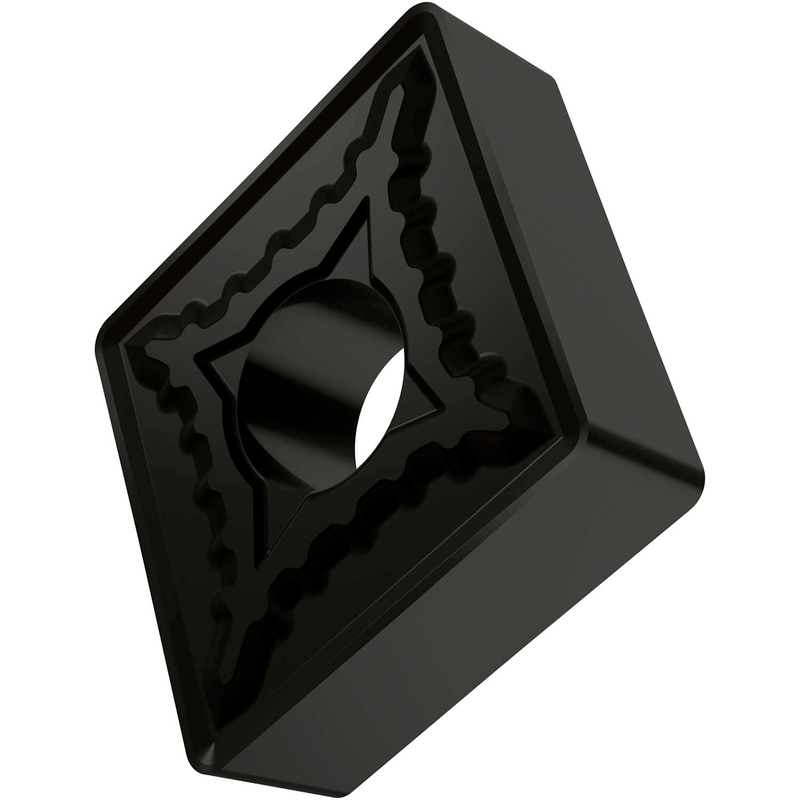

CNMG 543-SM:T7335
CNMG 543-SM:T7335

CNMG 543-SM:T7335

UGC DOR6915810
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette réversible négative de tournage, rhomboïde à 80° avec un diamètre du cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20-M40 et S15-S25, pour l'usinage de finition à lourd des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 543-SM:T7335
Product Name (ISO)CNMG 160612E-SM:T7335
GradeT7335
Chipbreaker (CBMD)SM
Product Number6915810
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.217"
Depth of Cut Max — mm (APMX)5.5 mm
Tool Information
Reference Numbers
EDP Number6915810
EAN3603603069206
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CNMG 543-SM:T7335 — Line Drawing PDF Download
