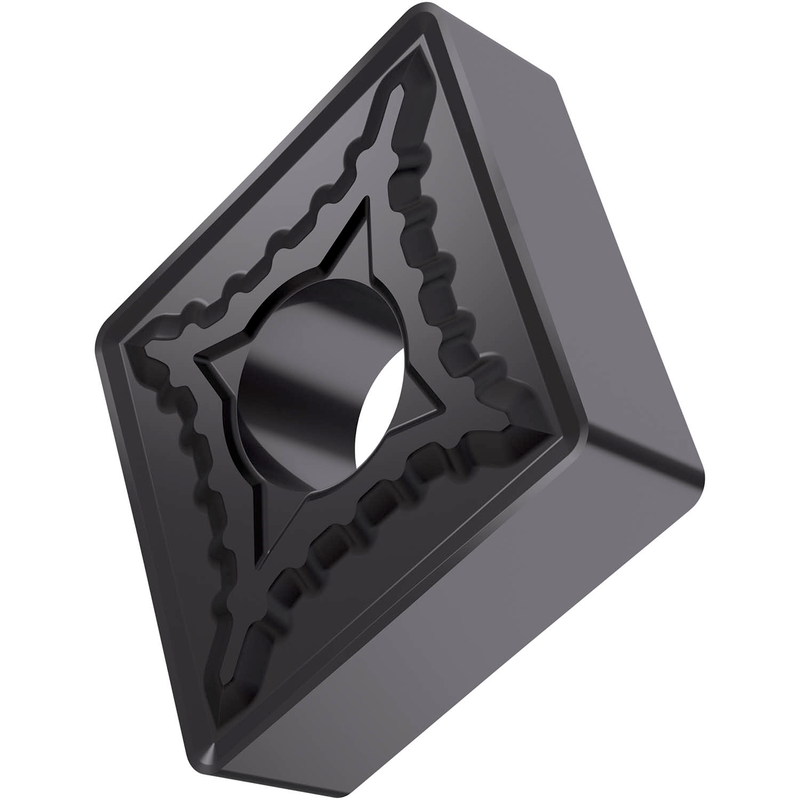

CNMG 643-SM:T6310
CNMG 643-SM:T6310

CNMG 643-SM:T6310

UGC DOR6915813
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec cercle inscrit de 3/4" de diamètre, 1/4" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SM, en nuance T6310, un carbure WC-Co à grain extra fin revêtu PVD dans les plages ISO P01 - P15/M01 - M15/K05 - K20 et S01 - S15, pour l'usinage fin à lourd des aciers, des aciers inoxydables, des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 643-SM:T6310
Product Name (ISO)CNMG 190612E-SM:T6310
GradeT6310
Chipbreaker (CBMD)SM
Product Number6915813
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6915813
EAN3603603069237
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CNMG 643-SM:T6310 — Line Drawing PDF Download
