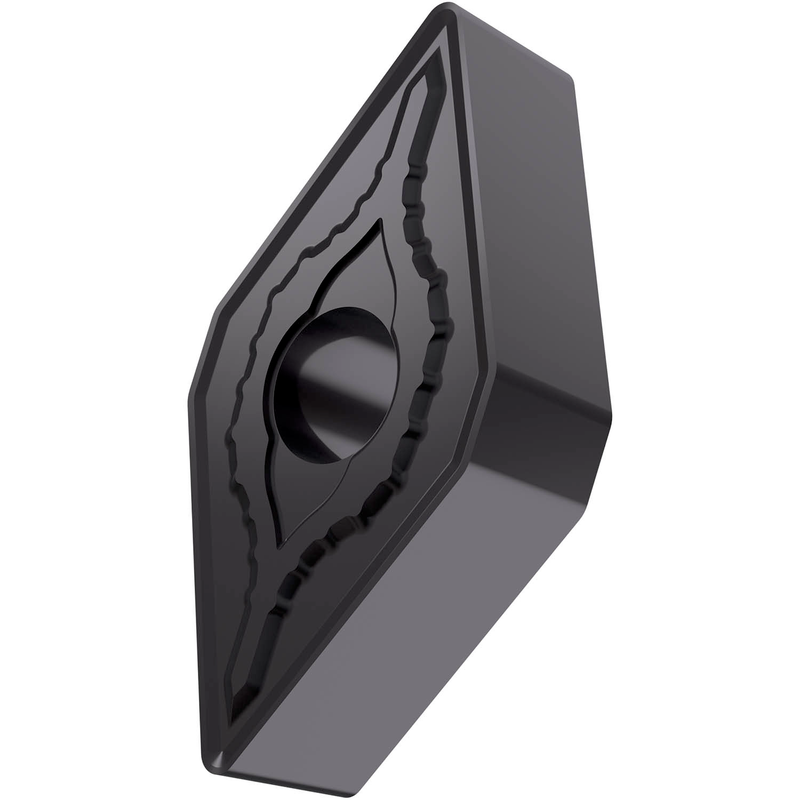

DNMG 443-SM:T6310
DNMG 443-SM:T6310

DNMG 443-SM:T6310

UGC DOR6915836
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 1/2" de diamètre, 1/4" d'épaisseur, rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, dans les plages ISO P01 - P15/M01 - M15/K05 - K20 et S01 - S15, pour l'usinage fin à lourd des aciers, des aciers inoxydables, des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 443-SM:T6310
Product Name (ISO)DNMG 150612E-SM:T6310
GradeT6310
Chipbreaker (CBMD)SM
Product Number6915836
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6915836
EAN3603603069466
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DNMG 443-SM:T6310 — Line Drawing PDF Download
