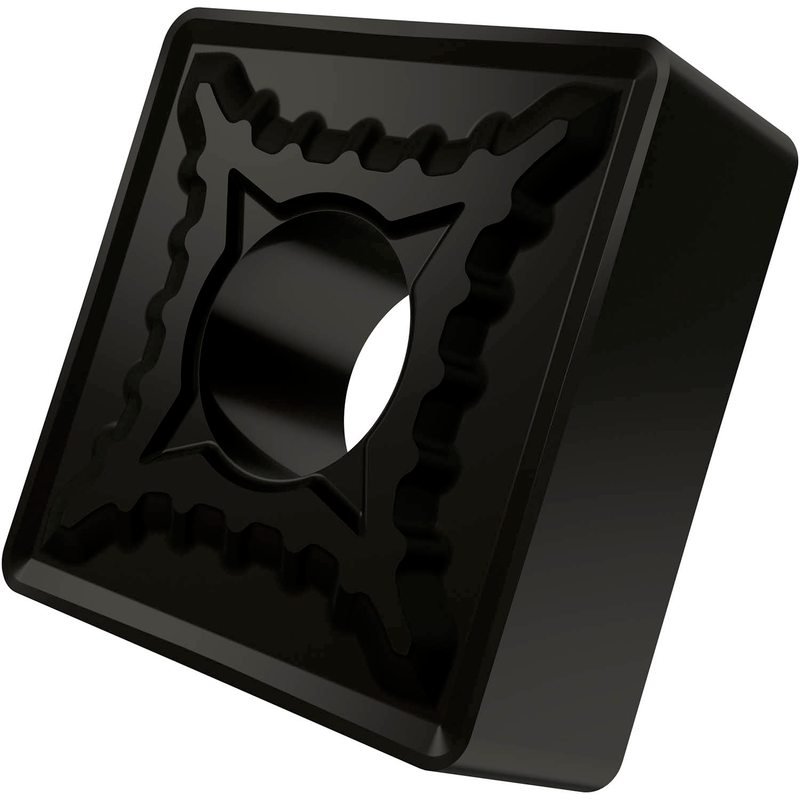

SNMG 432-SM:T9325
SNMG 432-SM:T9325

SNMG 432-SM:T9325

UGC DOR6915845
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-SM:T9325
Product Name (ISO)SNMG 120408E-SM:T9325
GradeT9325
Chipbreaker (CBMD)SM
Product Number6915845
Product FamilyGNMS
Insert Geometry
Insert DesignMNGC
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6915845
EAN3603603069558
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SNMG 432-SM:T9325 — Line Drawing PDF Download
