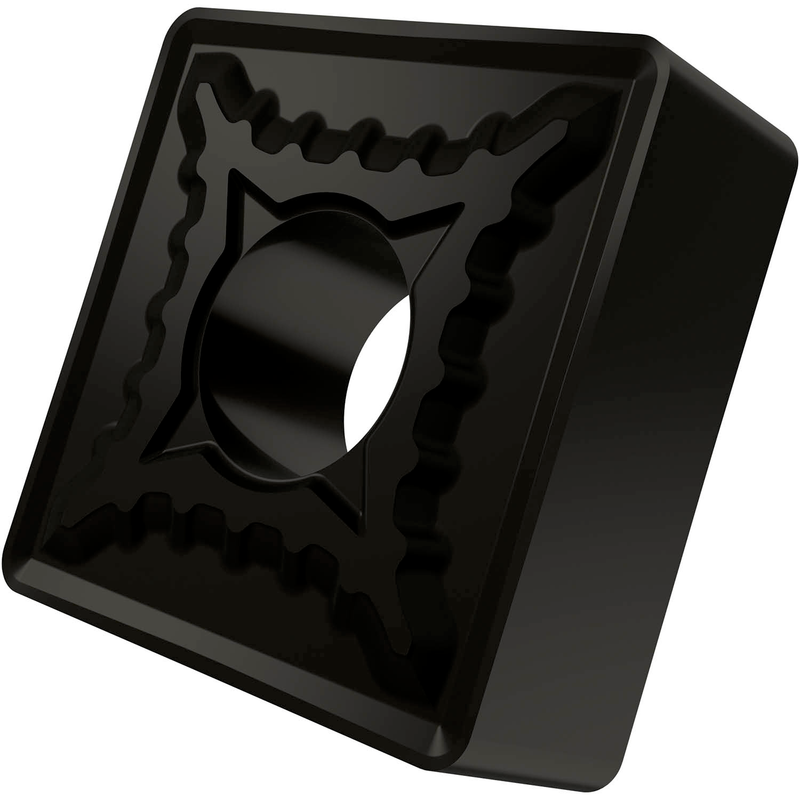

SNMG 644-SM:T9325
SNMG 644-SM:T9325

SNMG 644-SM:T9325

UGC DOR6915853
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.26 CAD - $29.26 CAD
$29.26 CAD
$29.26 CAD - $29.26 CAD
$29.26 CAD

Vendu en lots de : 10

Plaquette de tournage négative double-face, carrée avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T9325, un carbure WC-Co à gradient de fonctions revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage de finition à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 644-SM:T9325
Product Name (ISO)SNMG 190616E-SM:T9325
GradeT9325
Chipbreaker (CBMD)SM
Product Number6915853
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6915853
EAN3603603069633
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SNMG 644-SM:T9325 — Line Drawing PDF Download
