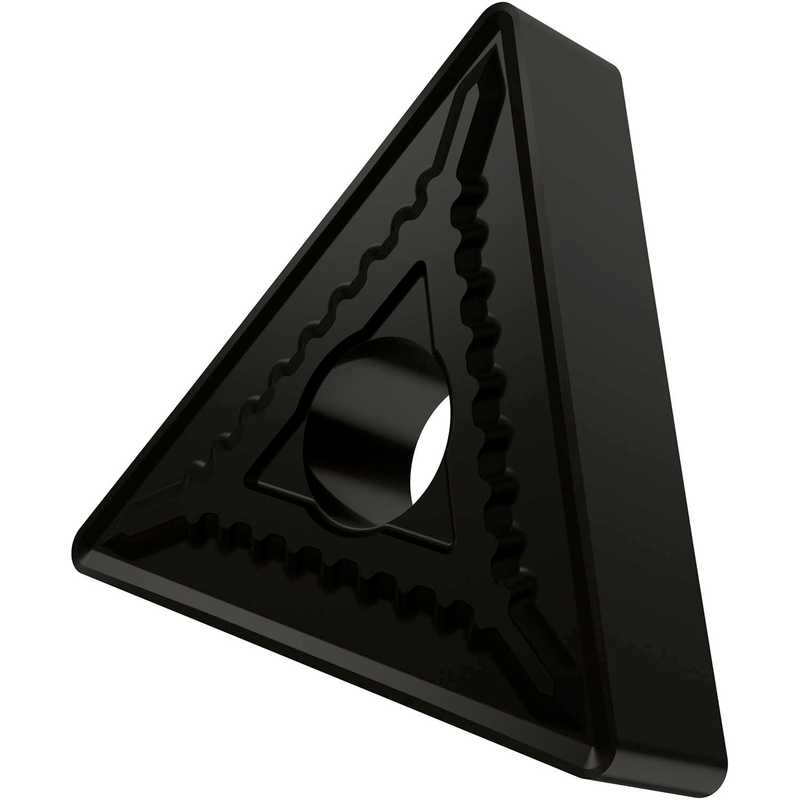

TNMG 332-SM:T9325
TNMG 332-SM:T9325

TNMG 332-SM:T9325

UGC DOR6915863
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire, avec un diamètre du cercle inscrit de 3/8", 3/16" d'épaisseur, un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans les plages ISO P15-P35 et M10-M30, pour l'usinage de finition à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-SM:T9325
Product Name (ISO)TNMG 160408E-SM:T9325
GradeT9325
Chipbreaker (CBMD)SM
Product Number6915863
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6915863
EAN3603603069732
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 332-SM:T9325 — 3D Model STP Download
TNMG 332-SM:T9325 — Line Drawing PDF Download
