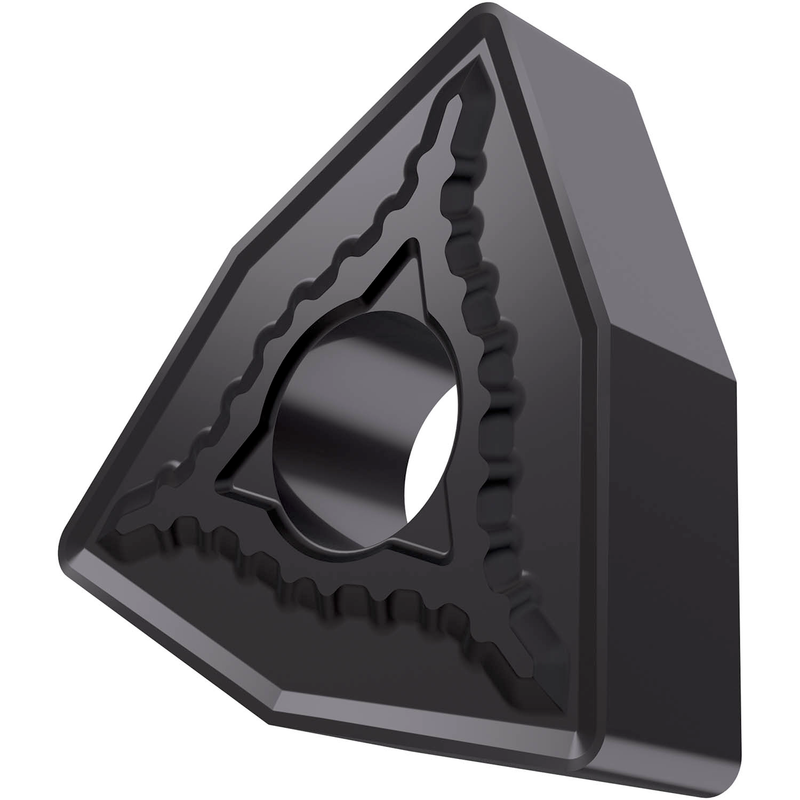

WNMG 332-SM:T6310
WNMG 332-SM:T6310

WNMG 332-SM:T6310

UGC DOR6915893
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 CAD - $11.40 CAD
$11.40 CAD
$11.40 CAD - $11.40 CAD
$11.40 CAD

Vendu en lots de : 10

Plaquette négative double-face à 80° trigon avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T6310, un carbure WC-Co à grain extra-fin revêtu PVD dans les plages ISO P01 - P15/M01 - M15/K05 - K20 et S01 - S15, pour l'usinage fin à lourd des aciers, des aciers inoxydables, des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 332-SM:T6310
Product Name (ISO)WNMG 060408E-SM:T6310
GradeT6310
Chipbreaker (CBMD)SM
Product Number6915893
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6915893
EAN3603603070035
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
WNMG 332-SM:T6310 — Line Drawing PDF Download
