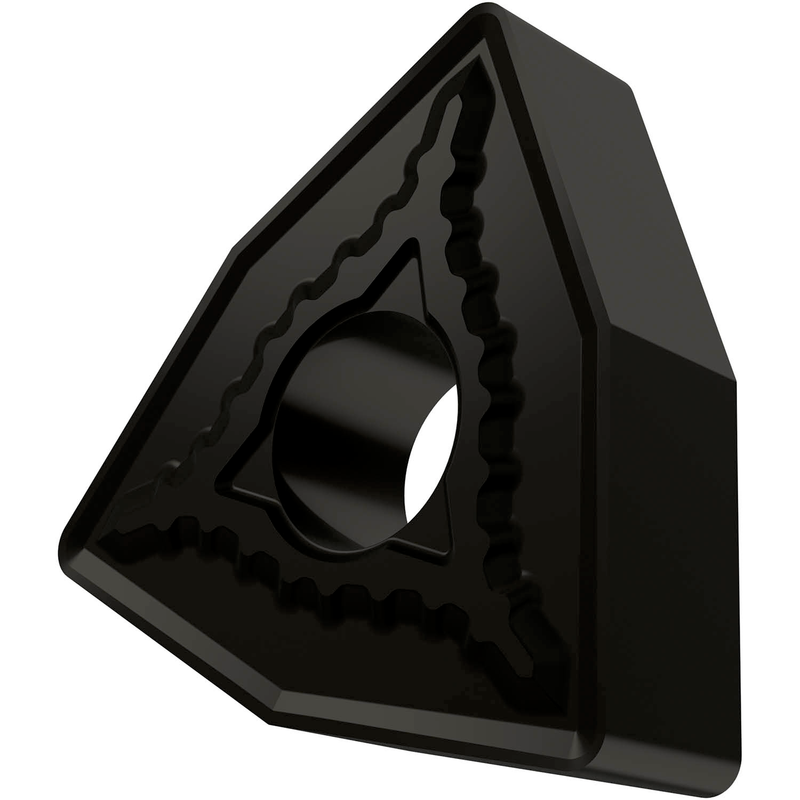

WNMG 431-SM:T7335
WNMG 431-SM:T7335

WNMG 431-SM:T7335

UGC DOR6915901
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, trigon de 80° avec un diamètre du cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20-M40 et S15-S25, pour l'usinage de finition à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 431-SM:T7335
Product Name (ISO)WNMG 080404E-SM:T7335
GradeT7335
Chipbreaker (CBMD)SM
Product Number6915901
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6915901
EAN3603603070110
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
WNMG 431-SM:T7335 — Line Drawing PDF Download
