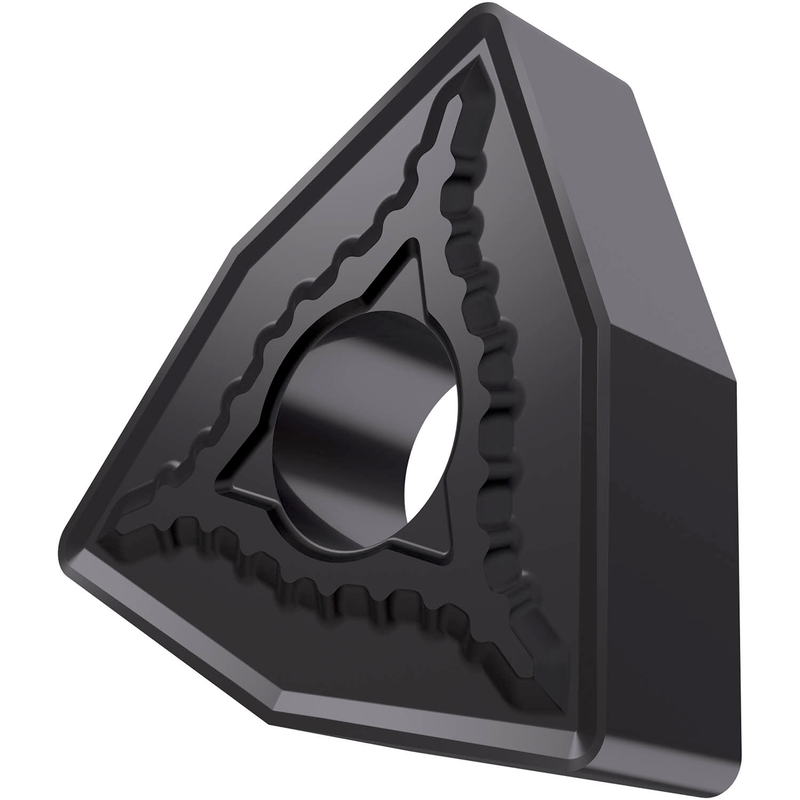

WNMG 433-SM:T6310
WNMG 433-SM:T6310

WNMG 433-SM:T6310

UGC DOR6915910
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette de tournage négative double-face, trigon 80° avec un diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15/K05 - K20 et S01 - S15, pour l'usinage fin à lourd des aciers, des aciers inoxydables, des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-SM:T6310
Product Name (ISO)WNMG 080412E-SM:T6310
GradeT6310
Chipbreaker (CBMD)SM
Product Number6915910
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6915910
EAN3603603070202
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
WNMG 433-SM:T6310 — Line Drawing PDF Download
