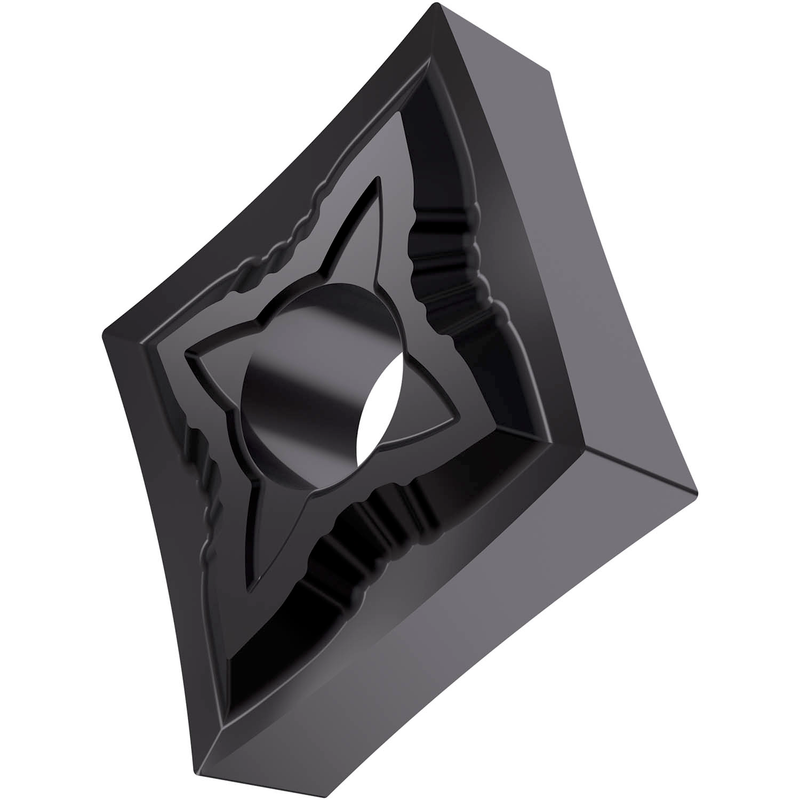

CNGG 430.5-SF:T6310
CNGG 430.5-SF:T6310

CNGG 430.5-SF:T6310

UGC DOR6919707
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.11 CAD - $21.11 CAD
$21.11 CAD
$21.11 CAD - $21.11 CAD
$21.11 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15/K05 - K20/S01 - S15 et H01 - H15, pour l'usinage fin à moyen des aciers, aciers inoxydables, fontes, superalliages et matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)CNGG 430.5-SF:T6310
Product Name (ISO)CNGG 120402E-SF:T6310
GradeT6310
Chipbreaker (CBMD)SF
Product Number6919707
Product FamilyCNGG
Insert Geometry
Insert DesignCNGG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6919707
EAN3603603073029
File Type Download
CNGG 430.5-SF:T6310 — Line Drawing PDF Download
