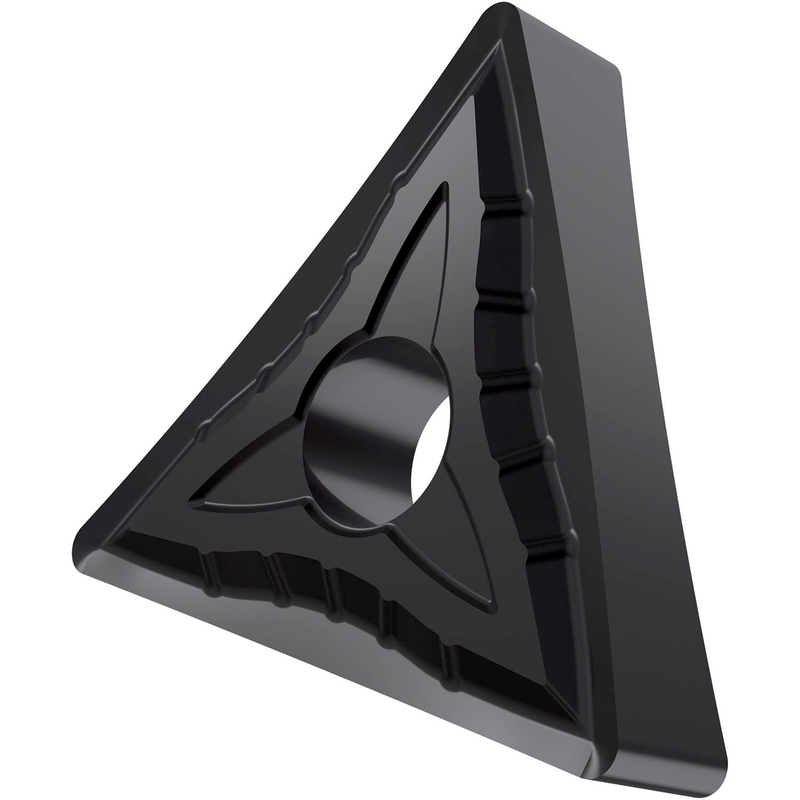

TNMG 331-SF:T6310
TNMG 331-SF:T6310

TNMG 331-SF:T6310

UGC DOR6919798
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, un rayon de bec de 1/64" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SF, en nuance T6310, un carbure WC-Co à grains extra fins revêtu PVD dans les gammes ISO P01 - P15/M01 - M15/K05 - K20/S01 - S15 et H01 - H15, pour l'usinage fin à moyen des aciers, des aciers inoxydables, des fontes, des superalliages et des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331-SF:T6310
Product Name (ISO)TNMG 160404E-SF:T6310
GradeT6310
Chipbreaker (CBMD)SF
Product Number6919798
Product FamilyLe Groupe national de gestion des menaces
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6919798
EAN3603603073531
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
TNMG 331-SF:T6310 — Line Drawing PDF Download
