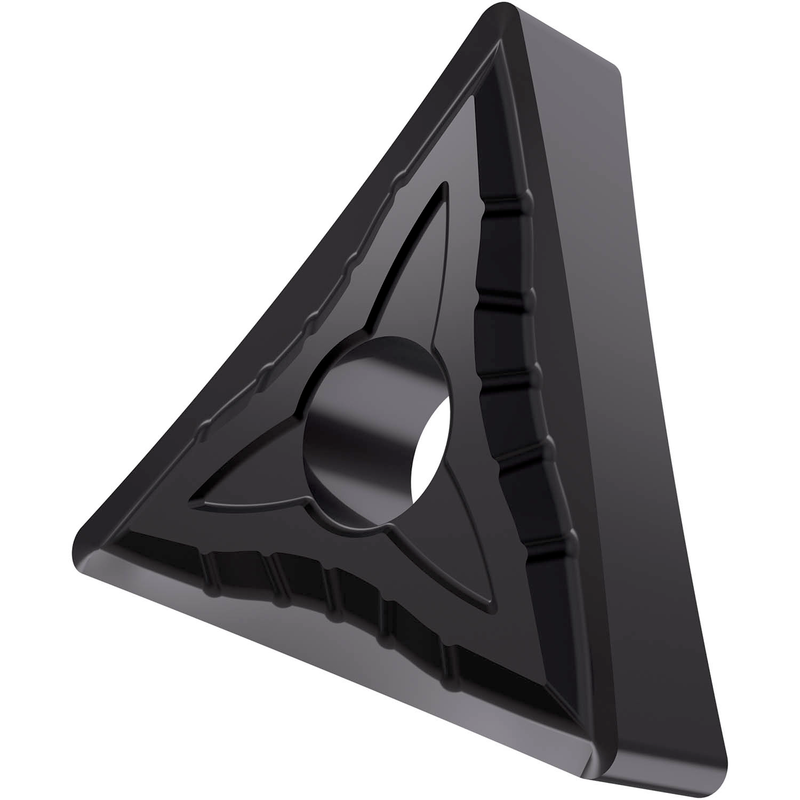

TNMG 432-SF:T6310
TNMG 432-SF:T6310

TNMG 432-SF:T6310

UGC DOR6919807
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SF, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, dans les plages ISO P01 - P15/M01 - M15/K05 - K20/S01 - S15 et H01 - H15, pour l'usinage de finition à moyen des aciers, aciers inoxydables, fontes, superalliages et matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 432-SF:T6310
Product Name (ISO)TNMG 220408E-SF:T6310
GradeT6310
Chipbreaker (CBMD)SF
Product Number6919807
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6919807
EAN3603603073623
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
TNMG 432-SF:T6310 — Line Drawing PDF Download
