32E2R060A32-SPD09-C
32E2R060A32-SPD09-C
32E2R060A32-SPD09-C

32E2R060A32-SPD09-C

UGC DOR6920665
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$589.00 CAD - $589.00 CAD
$589.00 CAD
$589.00 CAD - $589.00 CAD
$589.00 CAD

Vendu en lots de : 1

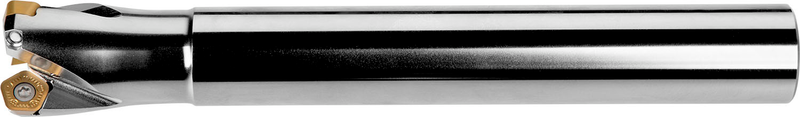

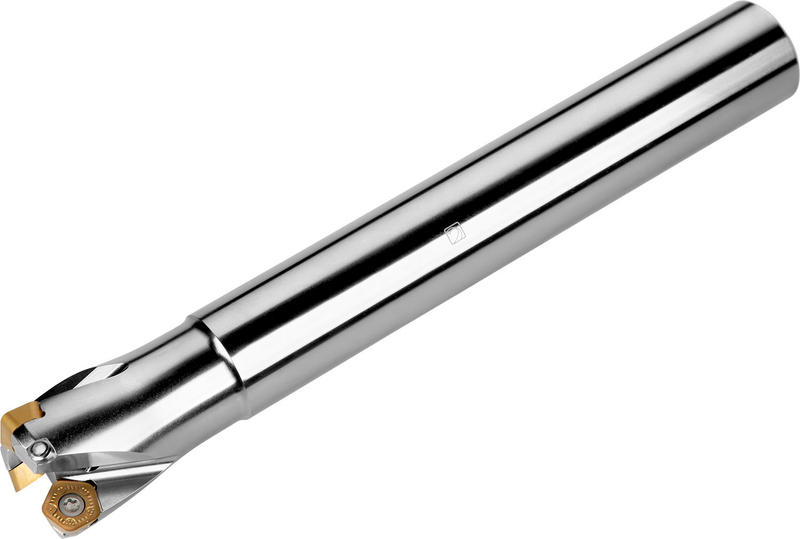

Fraise à avance rapide à géométrie positive/négative qui utilise 2 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 32mm avec un angle d'approche de 19° et une queue cylindrique de 32mm selon DIN 1835A, longueur fonctionnelle 60mm et longueur totale 250mm, arrosage central pour le surfaçage avec une profondeur de coupe maximale de 2.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E2R060A32-SPD09-C
Product Number6920665
Product FamilySPD09
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)0.724"
Cutting Diameter — mm (DC)18.4 mm
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSPD09
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920665
EAN3603603074019
File Type Download
32E2R060A32-SPD09-C — 3D Model STP Download
32E2R060A32-SPD09-C — 2D Model DXF Download
32E2R060A32-SPD09-C — Line Drawing PDF Download
