40E3R060A32-SPD09-C
40E3R060A32-SPD09-C
40E3R060A32-SPD09-C

40E3R060A32-SPD09-C

UGC DOR6920666
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$680.00 CAD - $680.00 CAD
$680.00 CAD
$680.00 CAD - $680.00 CAD
$680.00 CAD

Vendu en lots de : 1

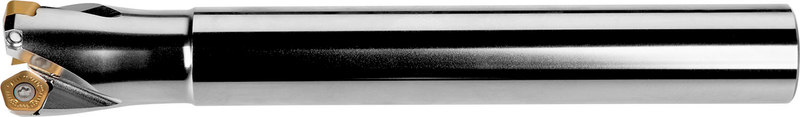

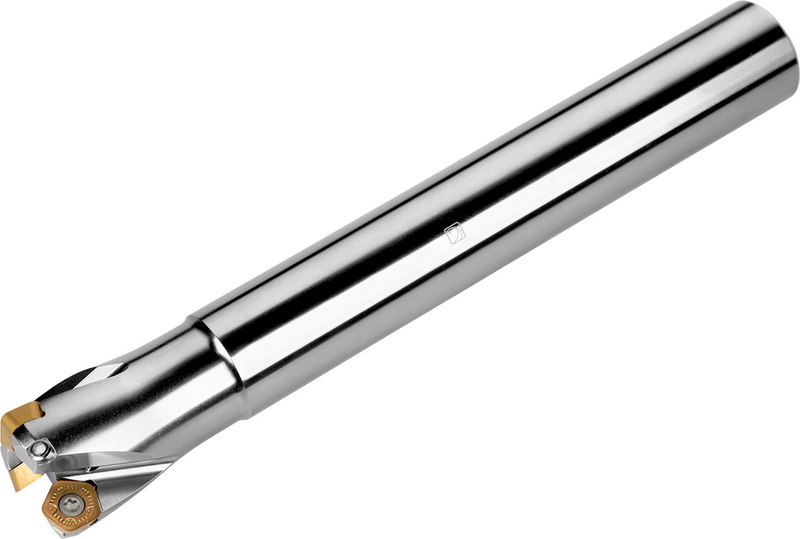

Fraise à avance rapide avec géométrie positive/négative qui utilise 3 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 40mm avec un angle d'attaque de 19° et un queue cylindrique de 32mm selon DIN 1835A, longueur fonctionnelle de 60mm et longueur totale de 250mm, arrosage par l'intérieur pour le surfaçage avec une profondeur de coupe maximale de 2.0mm

For more information about this product, click here

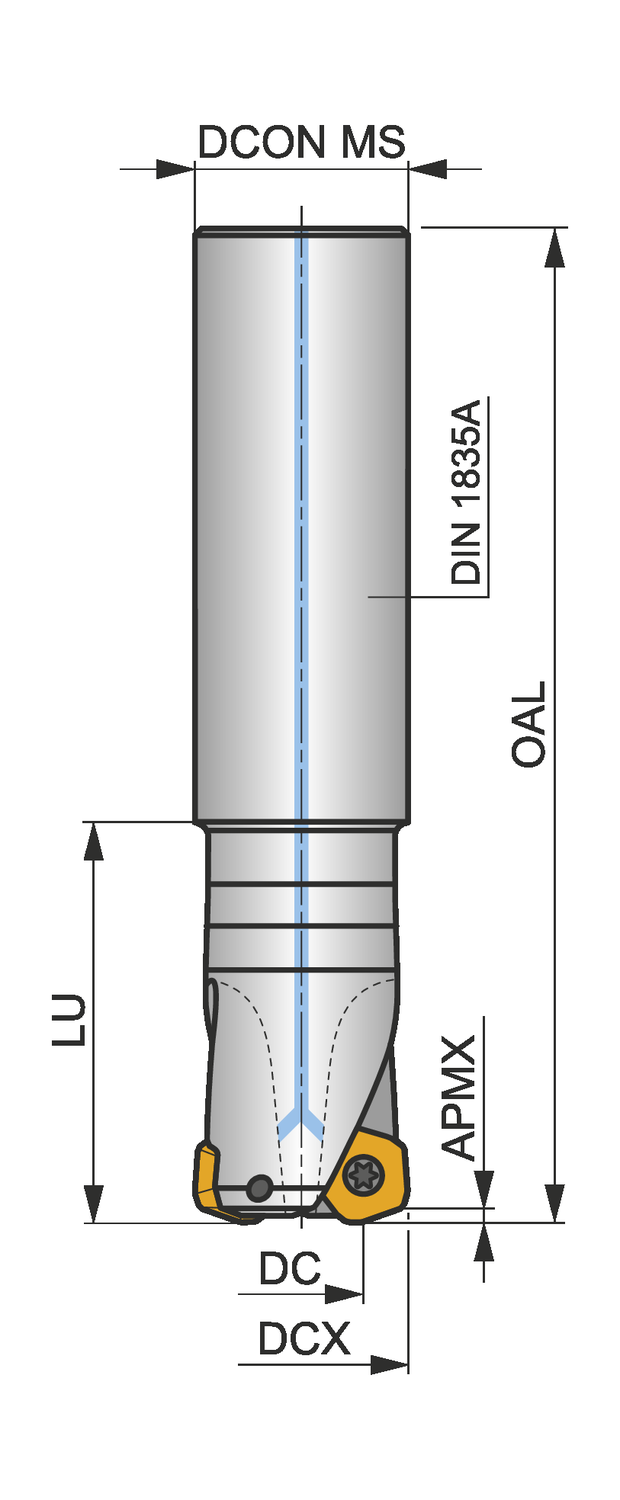

Identification
Ordering Code (ANSI/ISO)40E3R060A32-SPD09-C
Product Number6920666
Product FamilySPD09
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)1.004"
Cutting Diameter — mm (DC)25.5 mm
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSPD09
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920666
EAN3603603074026
File Type Download
40E3R060A32-SPD09-C — 3D Model STP Download
40E3R060A32-SPD09-C — 2D Model DXF Download
40E3R060A32-SPD09-C — Line Drawing PDF Download
