50A05R-S19PD09-C
50A05R-S19PD09-C
50A05R-S19PD09-C

50A05R-S19PD09-C

UGC DOR6920667
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$843.00 CAD - $843.00 CAD
$843.00 CAD
$843.00 CAD - $843.00 CAD
$843.00 CAD

Vendu en lots de : 1

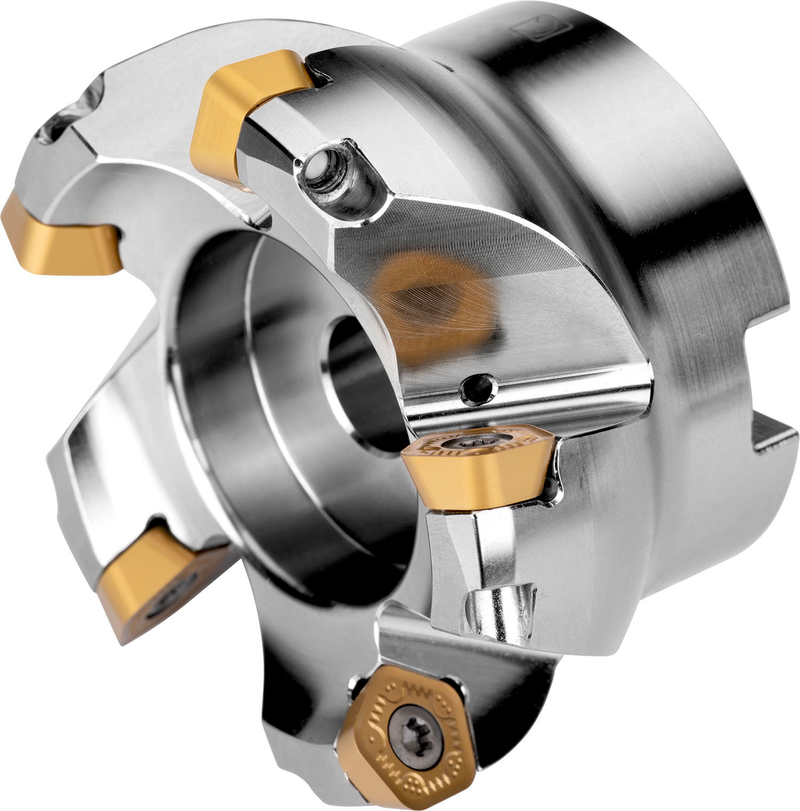

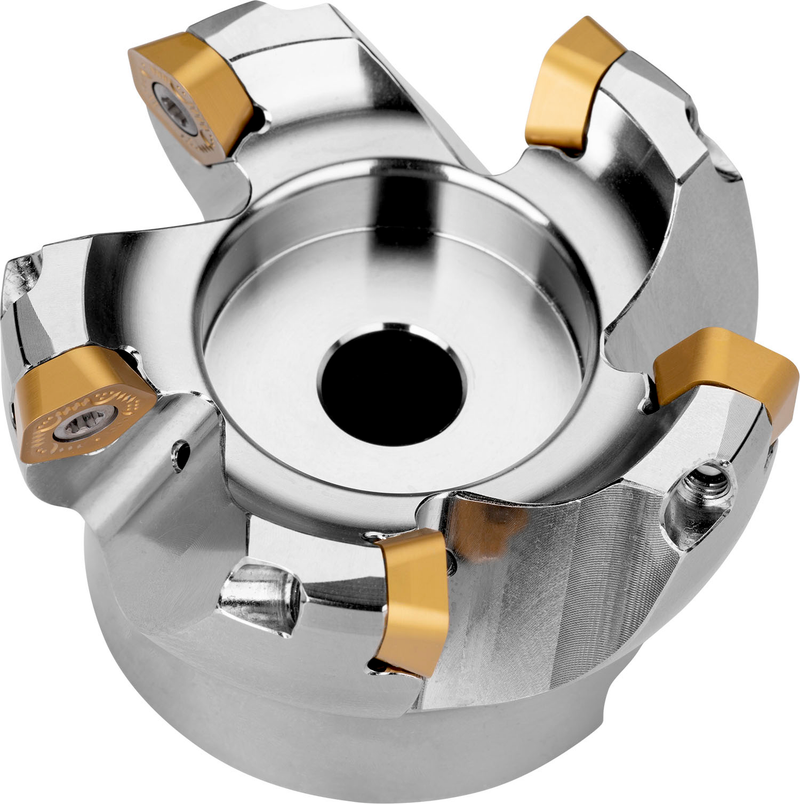

Fraise à avance élevée avec géométrie positive/négative qui utilise 5 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 50 mm avec un angle d'attaque de 19° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage central pour le surfaçage avec une profondeur de coupe maximale de 2,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A05R-S19PD09-C
Product Number6920667
Product FamilySPD09
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm

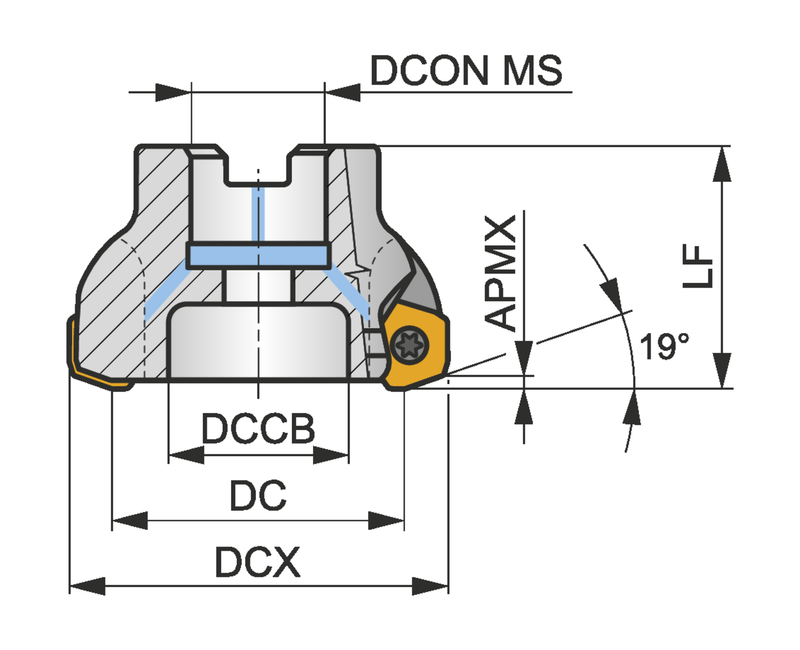

Dimensions
Cutting Diameter — in (DC)1.39"
Cutting Diameter — mm (DC)35.3 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSPD09
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920667
EAN3603603074033
File Type Download
50A05R-S19PD09-C — 3D Model STP Download
50A05R-S19PD09-C — 2D Model DXF Download
50A05R-S19PD09-C — Line Drawing PDF Download
