80A06R-S19PD09-C
80A06R-S19PD09-C
80A06R-S19PD09-C

80A06R-S19PD09-C

UGC DOR6920669
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,048.00 CAD - $1,048.00 CAD
$1,048.00 CAD
$1,048.00 CAD - $1,048.00 CAD
$1,048.00 CAD

Vendu en lots de : 1

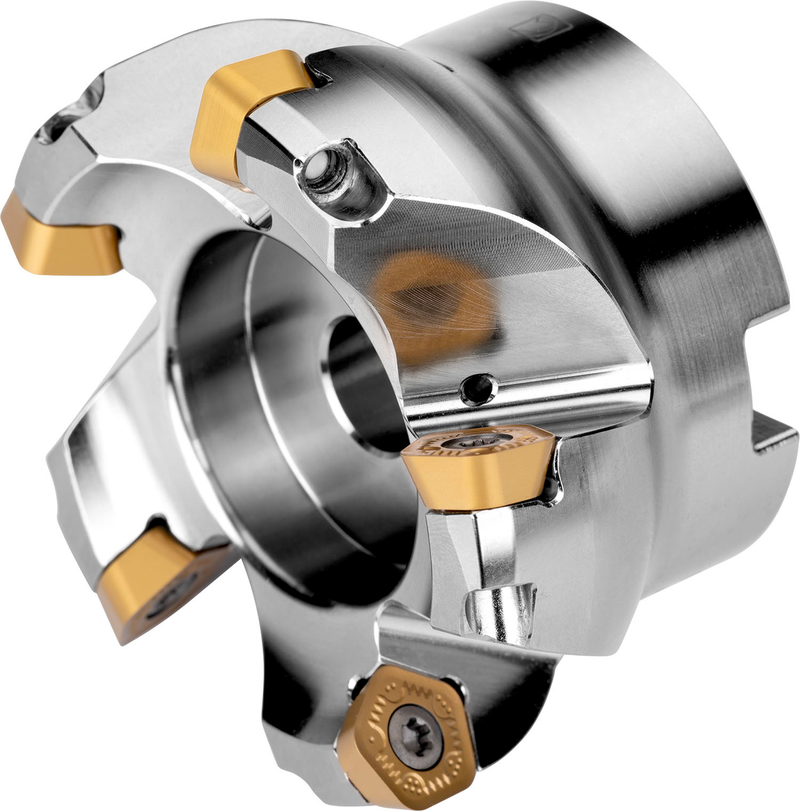

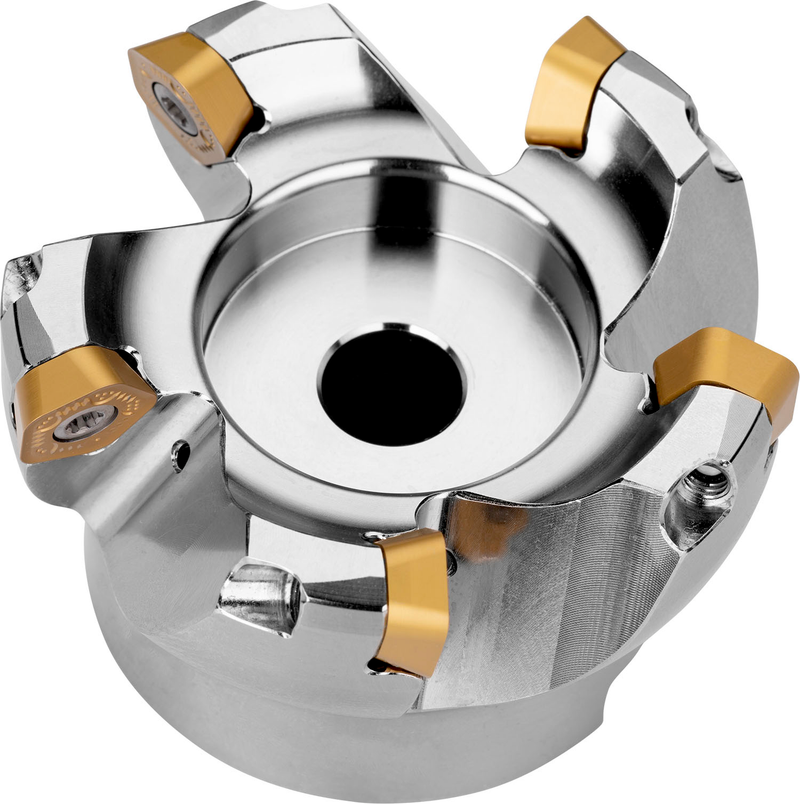

Fraise à avance rapide à géométrie positive/négative utilisant 6 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 80 mm avec angle d'attaque 19° et alésage de raccordement 27 mm selon DIN 8030-A, longueur de dépassement 50 mm, arrosage central pour le surfaçage avec une profondeur de coupe maximale de 2,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A06R-S19PD09-C
Product Number6920669
Product FamilySPD09
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm

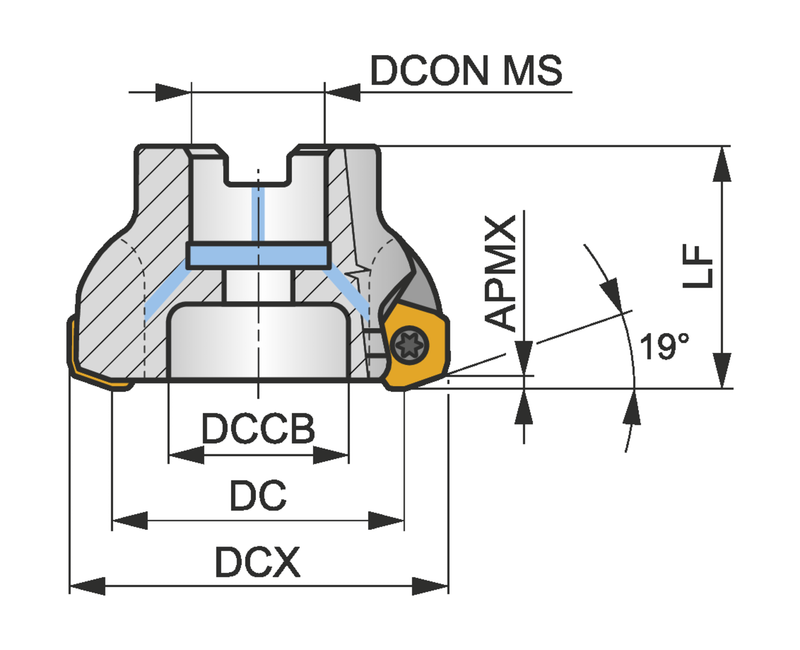

Dimensions
Cutting Diameter — in (DC)2.571"
Cutting Diameter — mm (DC)65.3 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSPD09
ShankFraise coquille DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920669
EAN3603603074057
File Type Download
80A06R-S19PD09-C — 3D Model STP Download
80A06R-S19PD09-C — 2D Model DXF Download
80A06R-S19PD09-C — Line Drawing PDF Download
