66A06R-S19PD09-CF
66A06R-S19PD09-CF
66A06R-S19PD09-CF

66A06R-S19PD09-CF

UGC DOR6920710
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$934.00 CAD - $934.00 CAD
$934.00 CAD
$934.00 CAD - $934.00 CAD
$934.00 CAD

Vendu en lots de : 1

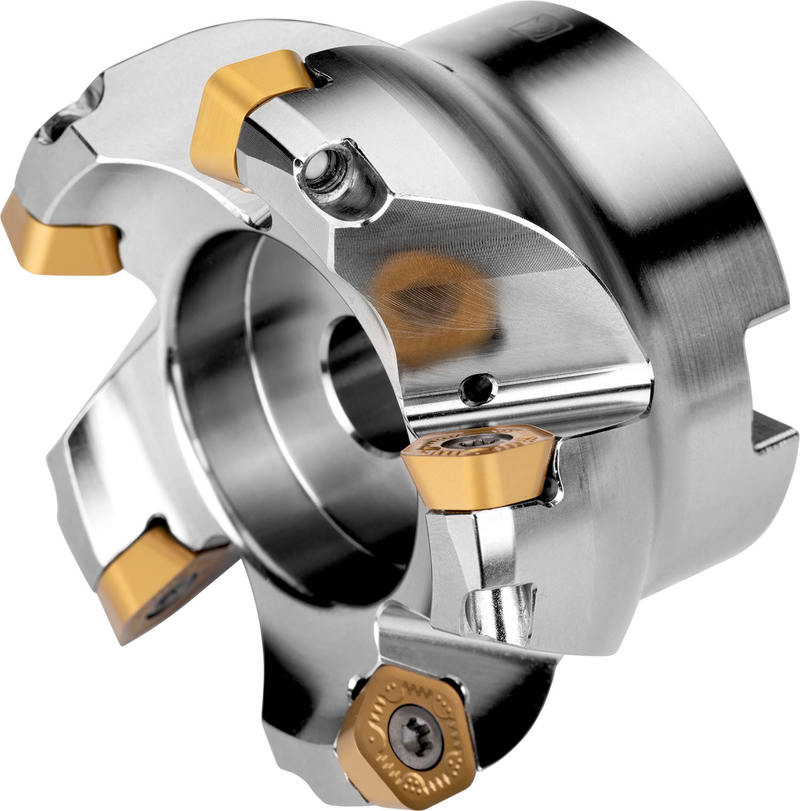

Fraise à avance rapide à géométrie positive/négative qui utilise 6 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe de 66mm avec un angle d'attaque de 19° et un alésage de connexion de 27mm selon DIN 8030-A, longueur de dépassement de 50mm, arrosage interne pour le surfaçage avec une profondeur de coupe maximale de 2,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)66A06R-S19PD09-CF
Product Number6920710
Product FamilySPD09

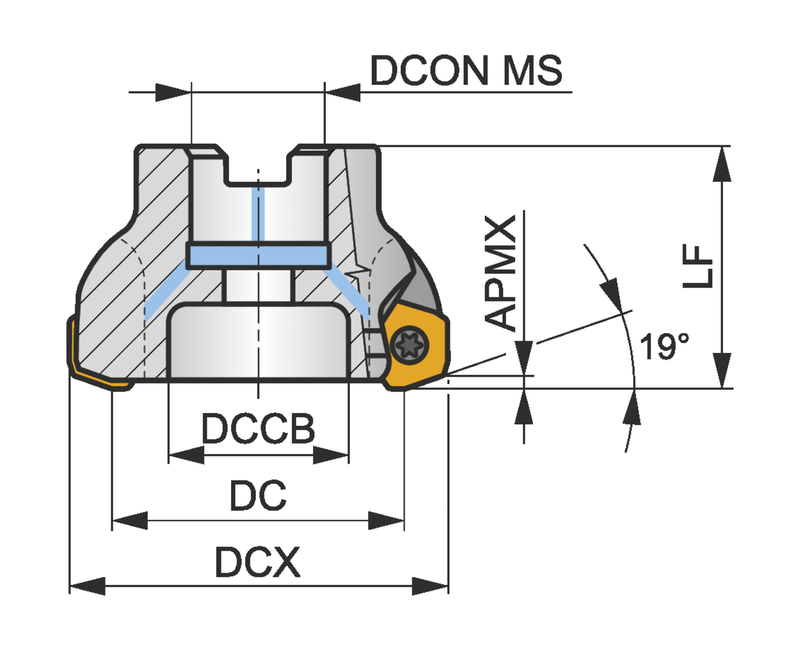

Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)2.016"
Cutting Diameter — mm (DC)51.2 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSPD09
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920710
EAN3603603074064
File Type Download
66A06R-S19PD09-CF — 3D Model STP Download
66A06R-S19PD09-CF — 2D Model DXF Download
66A06R-S19PD09-CF — Line Drawing PDF Download
