52A05R-SMORC12-C
52A05R-SMORC12-C
52A05R-SMORC12-C

52A05R-SMORC12-C

UGC DOR6920712
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$528.00 CAD - $528.00 CAD
$528.00 CAD
$528.00 CAD - $528.00 CAD
$528.00 CAD

Vendu en lots de : 1

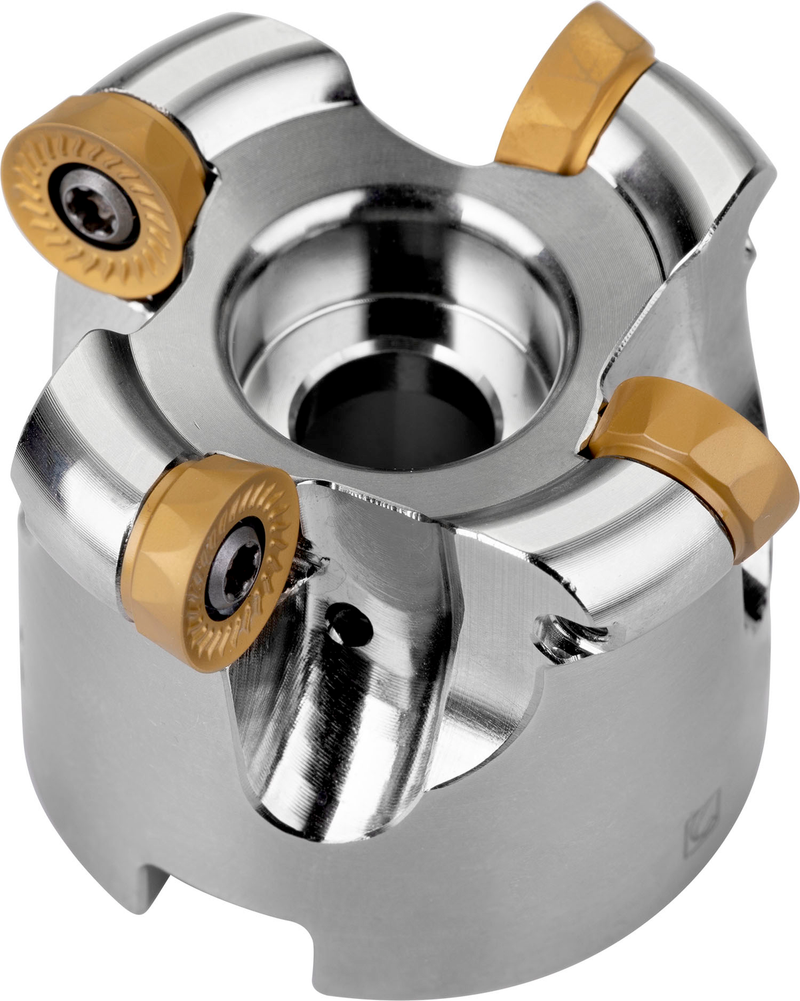

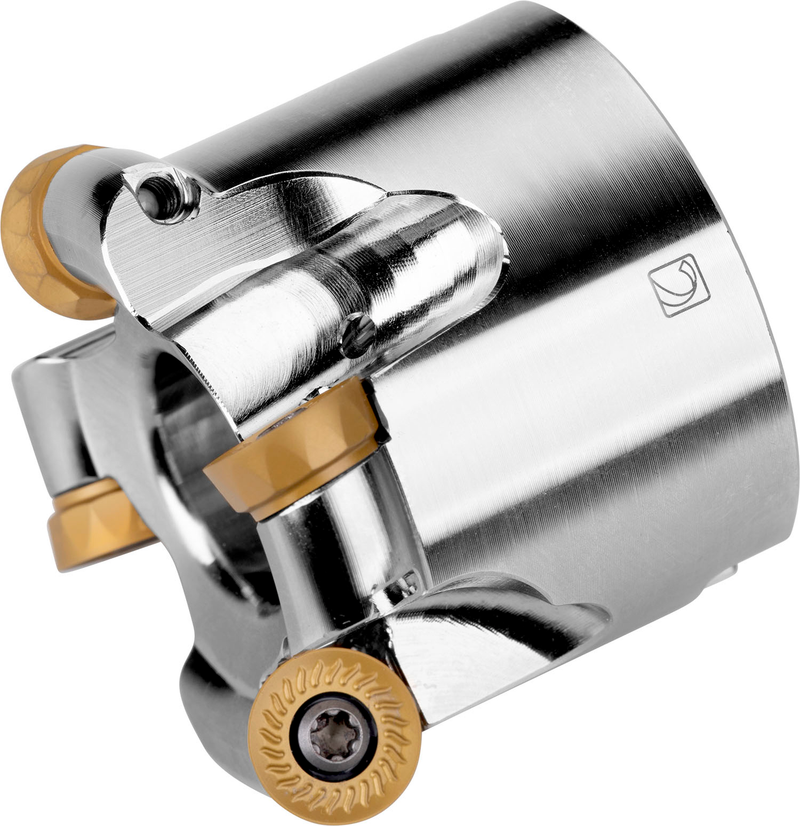

Fraise à surfacer-dresser avec géométrie doublement négative, utilisant 5 plaquettes simple-face RCMT 1204MO.., diamètre de coupe 52mm avec alésage de connexion de 22mm selon DIN 8030-A, longueur en porte-à-faux de 40mm, lubrification par l'intérieur pour le surfaçage, la copie, le rampement, le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 6.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A05R-SMORC12-C
Product Number6920712
Product FamilySRC12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

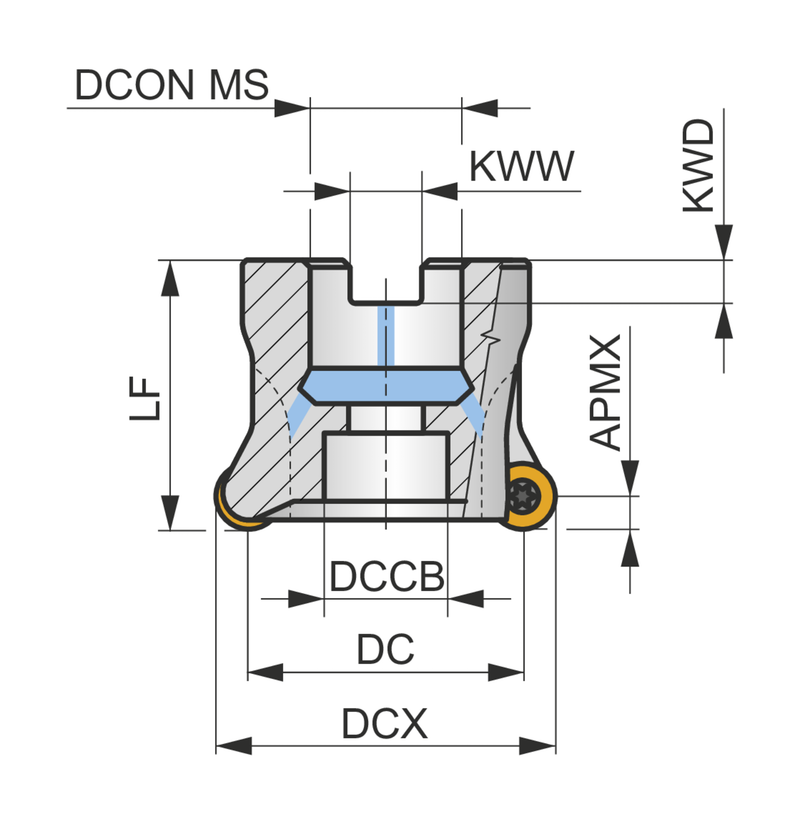

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRC12
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920712
EAN3603603074088
File Type Download
52A05R-SMORC12-C — 3D Model STP Download
52A05R-SMORC12-C — 2D Model DXF Download
52A05R-SMORC12-C — Line Drawing PDF Download
