66A05R-SMORC16-C
66A05R-SMORC16-C
66A05R-SMORC16-C

66A05R-SMORC16-C

UGC DOR6920714
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$603.00 CAD - $603.00 CAD
$603.00 CAD
$603.00 CAD - $603.00 CAD
$603.00 CAD

Vendu en lots de : 1

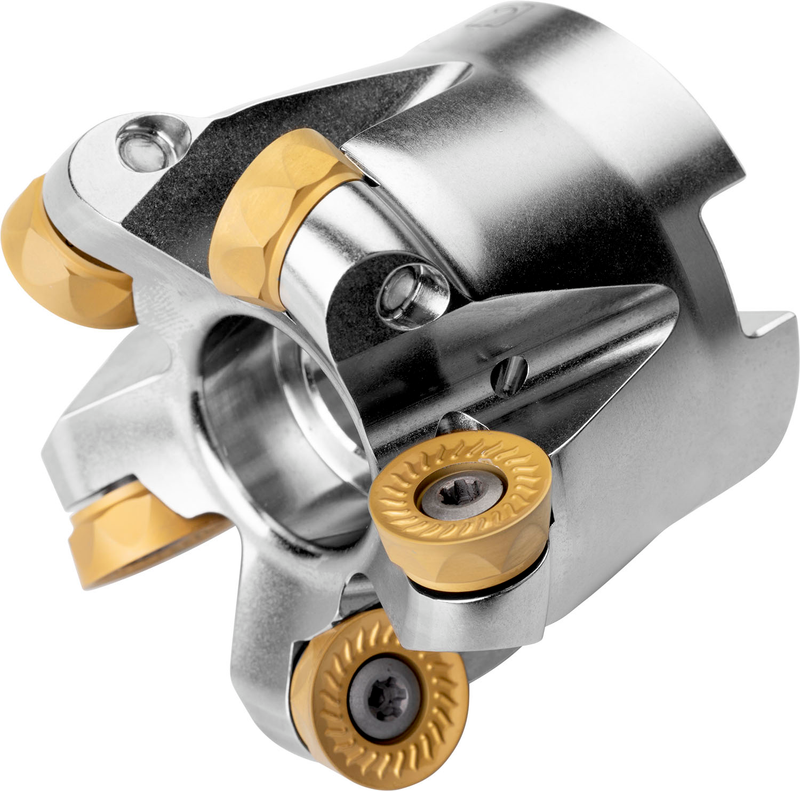

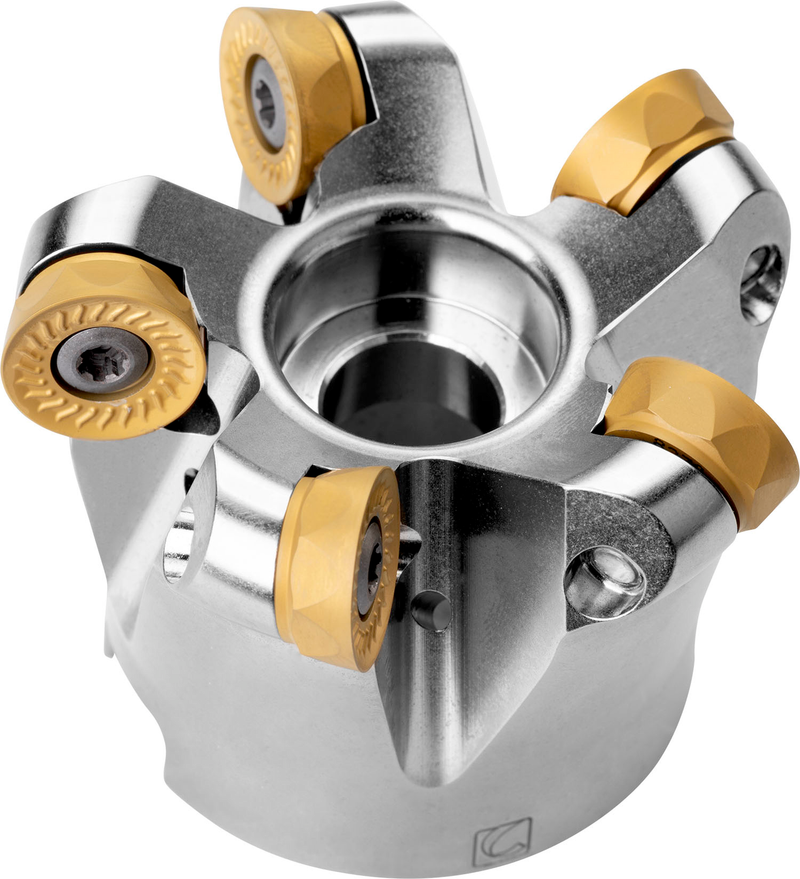

Fraise à copier avec géométrie double négative qui utilise 5 plaquettes RCMT 1606MO... simple face, diamètre de coupe 66 mm avec alésage de connexion 27 mm selon DIN 8030-A, longueur de dépassement 50 mm, arrosage central pour le surfaçage, le fraisage en plongée, le fraisage en hélice et le fraisage progressif en plongée avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)66A05R-SMORC16-C
Product Number6920714
Product FamilySRC16
Insert Geometry
Depth of Cut Max — mm (APMX)2.3 mm

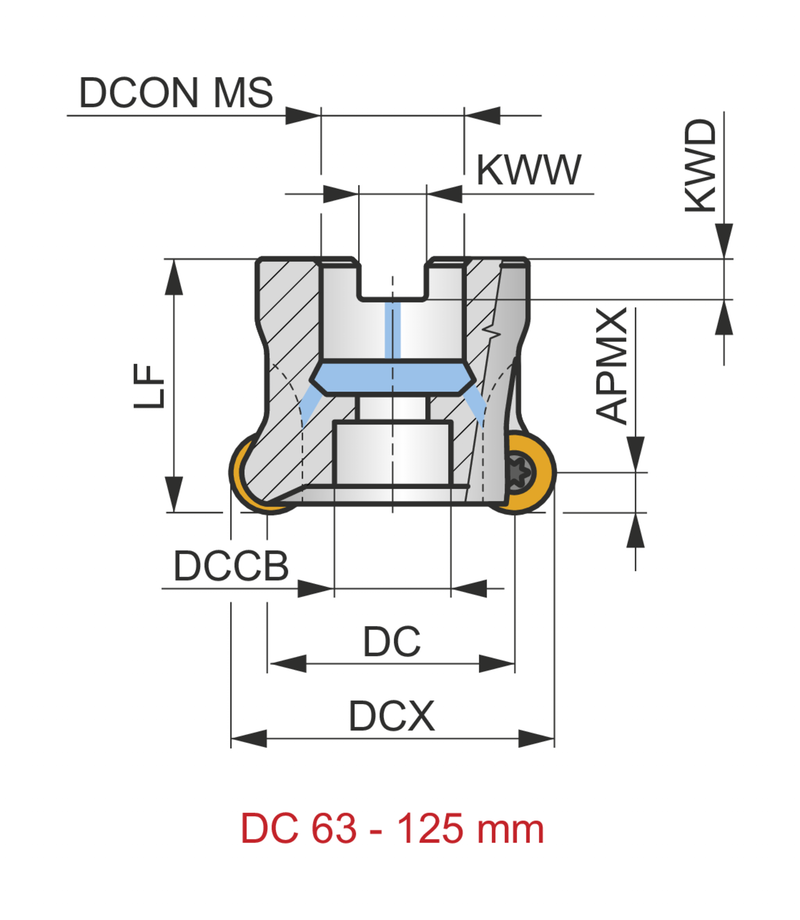

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRC16
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920714
EAN3603603074101
File Type Download
66A05R-SMORC16-C — 3D Model STP Download
66A05R-SMORC16-C — 2D Model DXF Download
66A05R-SMORC16-C — Line Drawing PDF Download
