125A07R-SMORC16-C
125A07R-SMORC16-C
125A07R-SMORC16-C

125A07R-SMORC16-C

UGC DOR6920715
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,015.00 CAD - $1,015.00 CAD
$1,015.00 CAD
$1,015.00 CAD - $1,015.00 CAD
$1,015.00 CAD

Vendu en lots de : 1

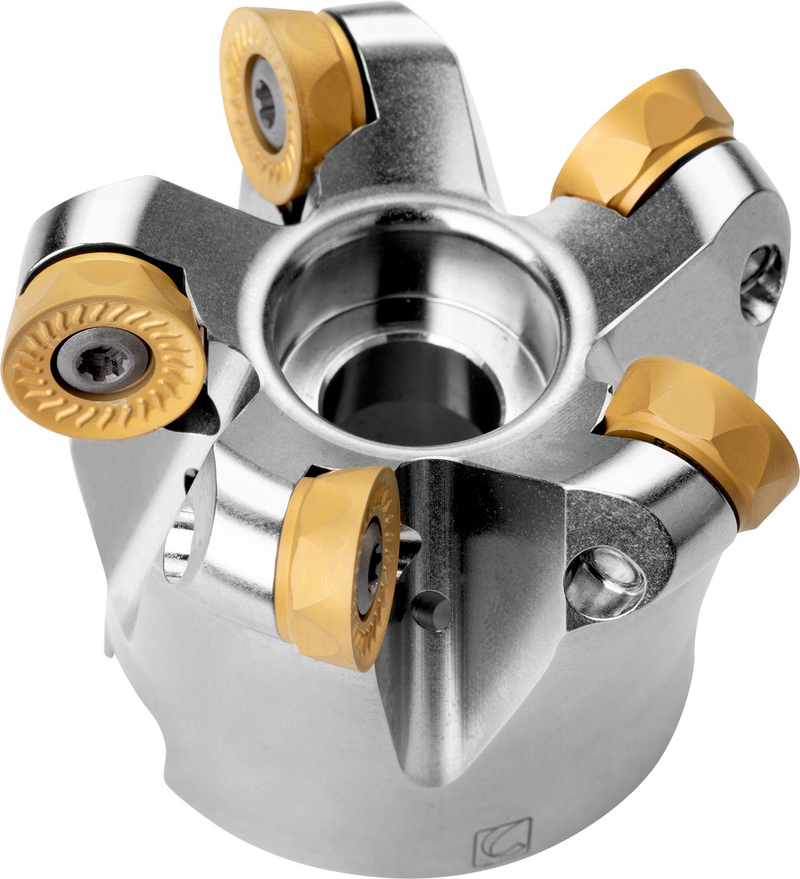

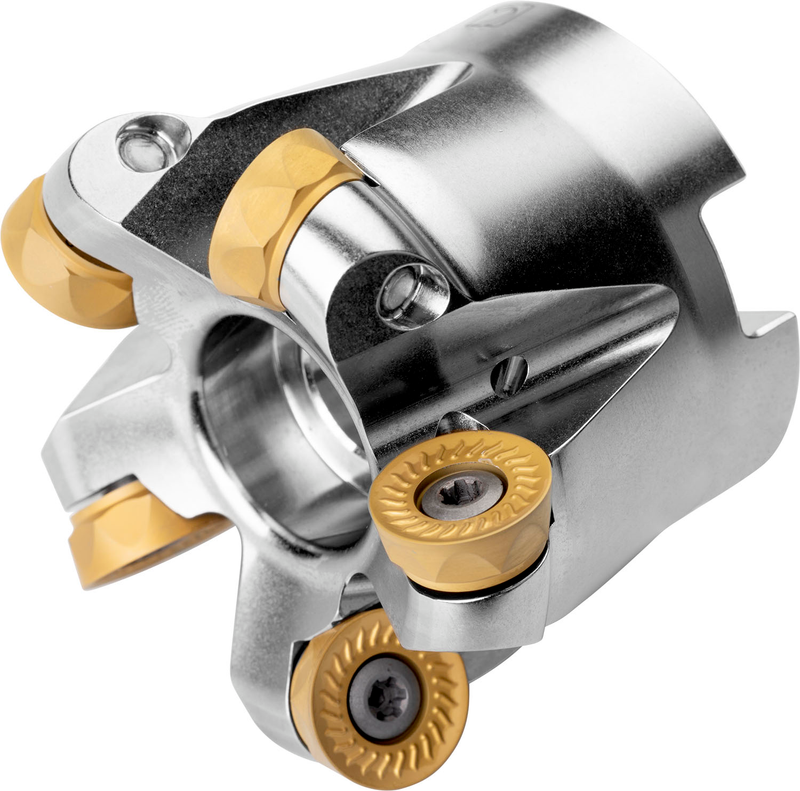

Fraise à copier avec double géométrie négative utilisant 7 plaquettes simple face RCMT 1606MO..., diamètre de coupe 125mm avec alésage de raccordement 40mm selon DIN 8030-A, longueur de dépassement 63mm, arrosage centralisé pour surfaçage, fraisage en copie, fraisage en rampe, fraisage hélicoïdal et fraisage en plongée progressive avec une profondeur de coupe maximale de 8,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A07R-SMORC16-C
Product Number6920715
Product FamilySRC16
Insert Geometry
Depth of Cut Max — mm (APMX)2.3 mm

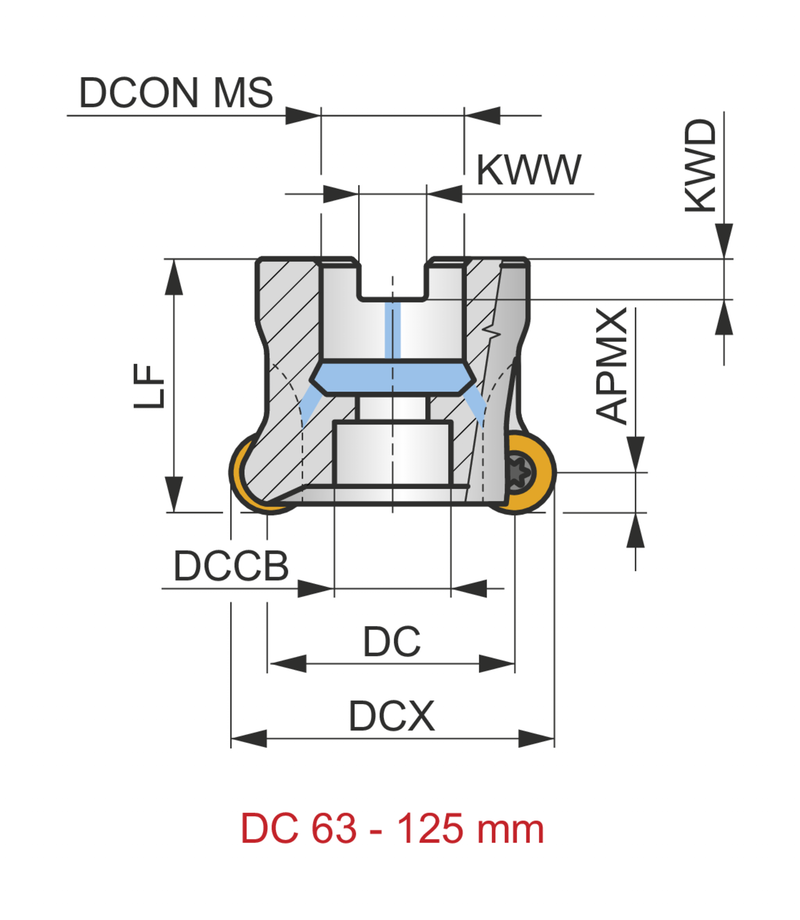

Dimensions
Cutting Diameter — in (DC)4.291"
Cutting Diameter — mm (DC)109.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSRC16
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920715
EAN3603603074118
File Type Download
125A07R-SMORC16-C — 3D Model STP Download
125A07R-SMORC16-C — 2D Model DXF Download
125A07R-SMORC16-C — Line Drawing PDF Download
