UGC DOR6920717
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$978.00 CAD - $978.00 CAD
$978.00 CAD
$978.00 CAD - $978.00 CAD
$978.00 CAD

Vendu en lots de : 1

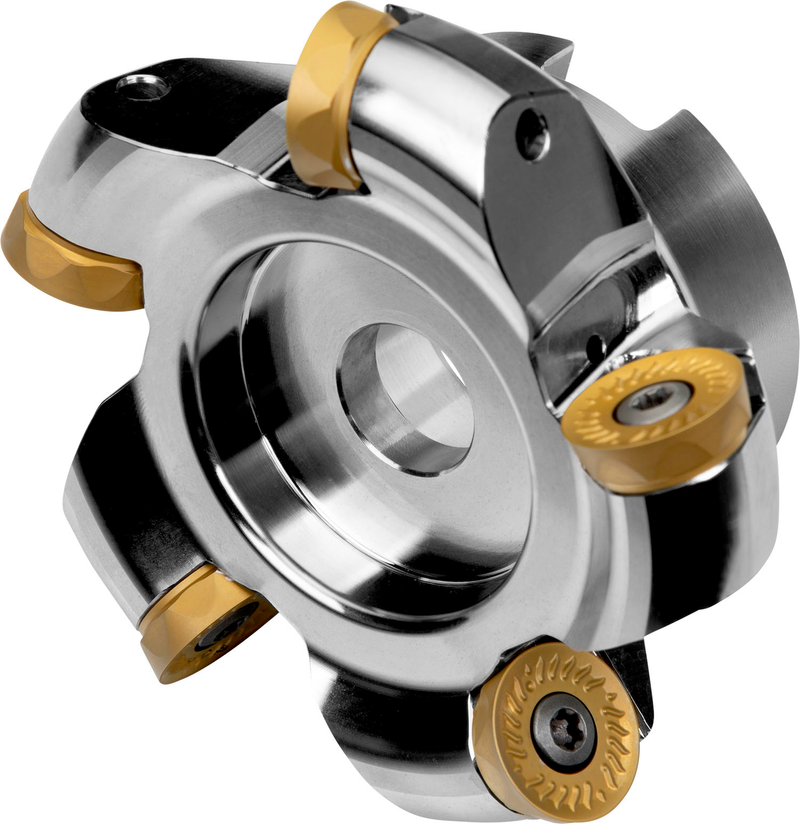

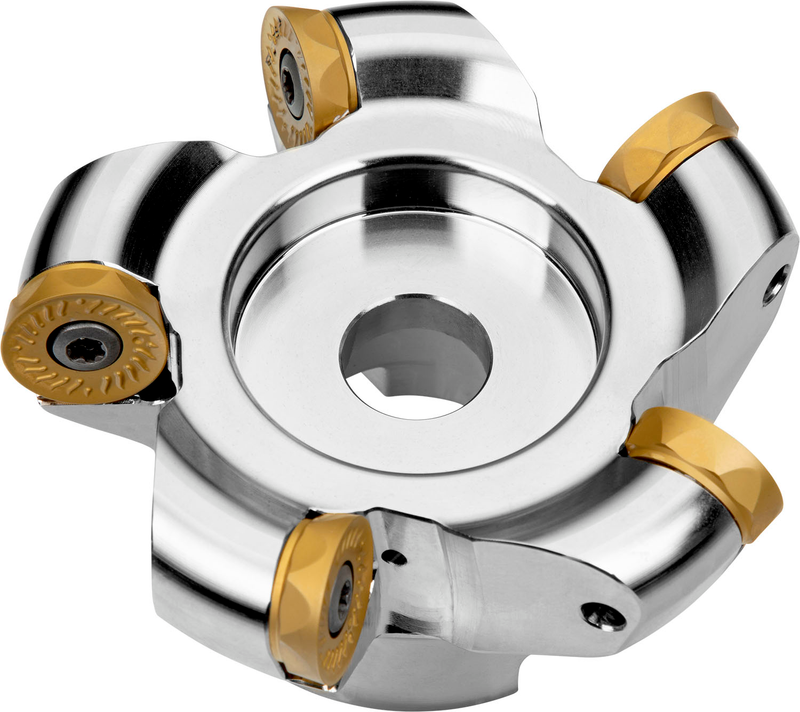

Fraise à copier de surfaçage à géométrie double négative utilisant 6 plaquettes simple face RCMT 2006MO.., diamètre de coupe 125mm avec alésage de raccordement 40mm selon DIN 8030-A, longueur de dépassement 63mm, arrosage central pour surfaçage, fraisage à copier, usinage en rampe, fraisage hélicoïdal et fraisage en plongée progressive avec une profondeur de coupe maximale de 10.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A06R-SMORC20-C
Product Number6920717
Product FamilySRC20
Insert Geometry
Depth of Cut Max — mm (APMX)2.9 mm

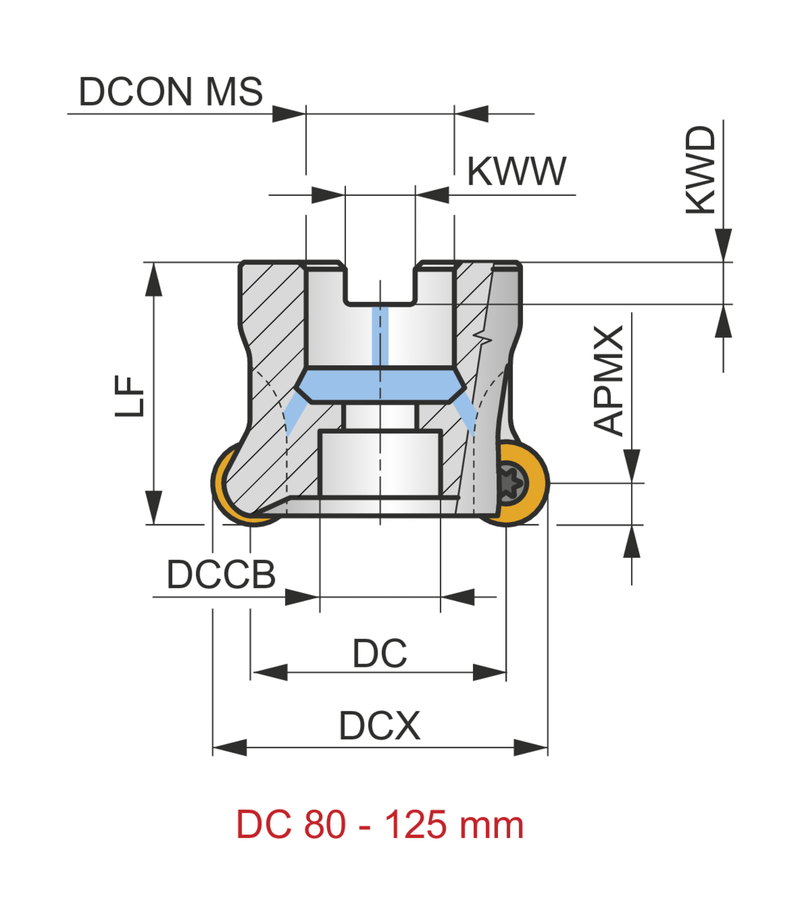

Dimensions
Cutting Diameter — in (DC)4.134"
Cutting Diameter — mm (DC)105.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRC20
ShankFraise-disque DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6920717
EAN3603603074132
File Type Download
125A06R-SMORC20-C — 3D Model STP Download
125A06R-SMORC20-C — 2D Model DXF Download
125A06R-SMORC20-C — Line Drawing PDF Download
