SCET 050204-SD:D9335
SCET 050204-SD:D9335

SCET 050204-SD:D9335

UGC DOR6920784
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.36 CAD - $17.36 CAD
$17.36 CAD
$17.36 CAD - $17.36 CAD
$17.36 CAD

Vendu en lots de : 10

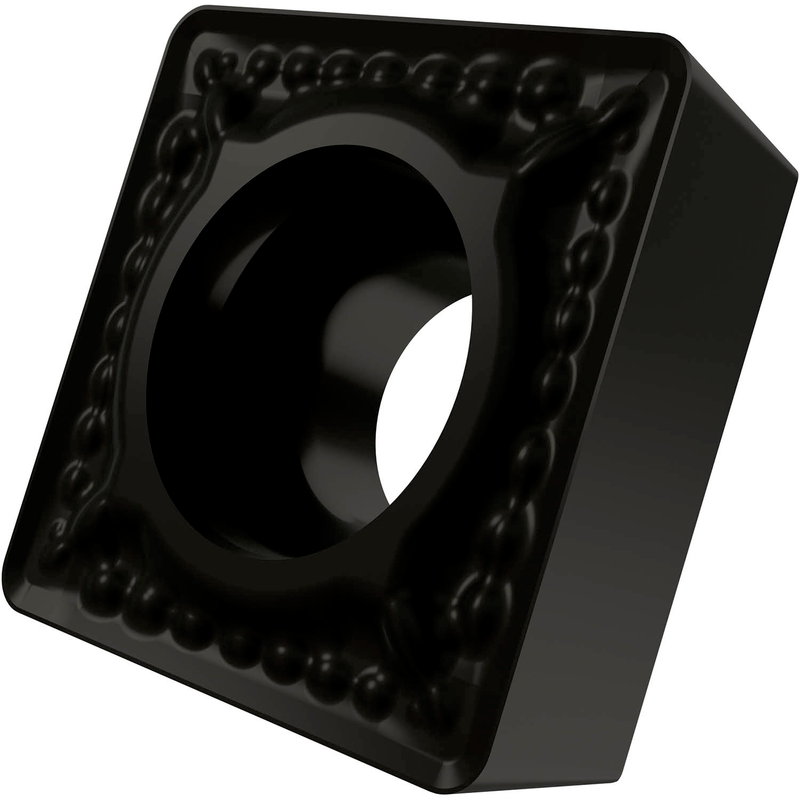

Plaquette de perçage pour l'alésage périphérique des forets indexables PRAMET 80.D, avec une plage de diamètres de 15 à 19 mm, plaquette en carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD D9335, gammes de nuances ISO P20-P35 et M15-M30, avec géométrie SD pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCET 050204-SD:D9335
GradeD9335
Chipbreaker (CBMD)DS
Product Number6920784
Product FamilySCET

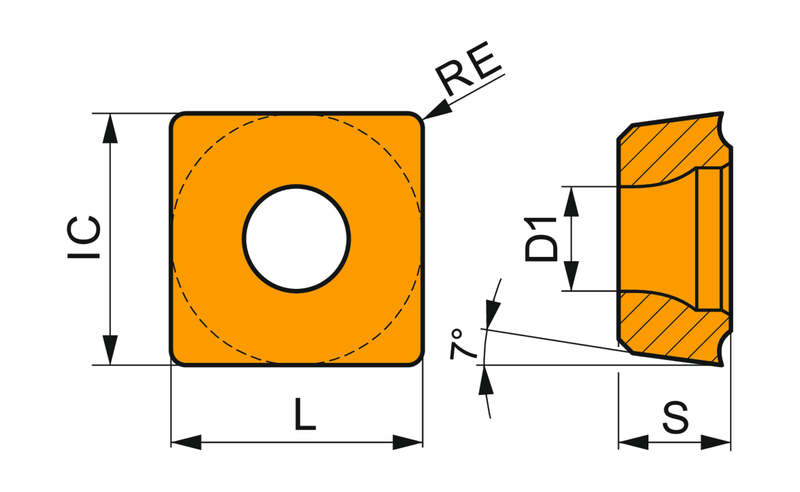

Insert Geometry
Insert DesignSCET
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number6920784
EAN3603603074163
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SCET 050204-SD:D9335 — Line Drawing PDF Download
