SCET 150512-SD:D8330
SCET 150512-SD:D8330

SCET 150512-SD:D8330

UGC DOR6920803
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.20 CAD - $28.20 CAD
$28.20 CAD
$28.20 CAD - $28.20 CAD
$28.20 CAD

Vendu en lots de : 10

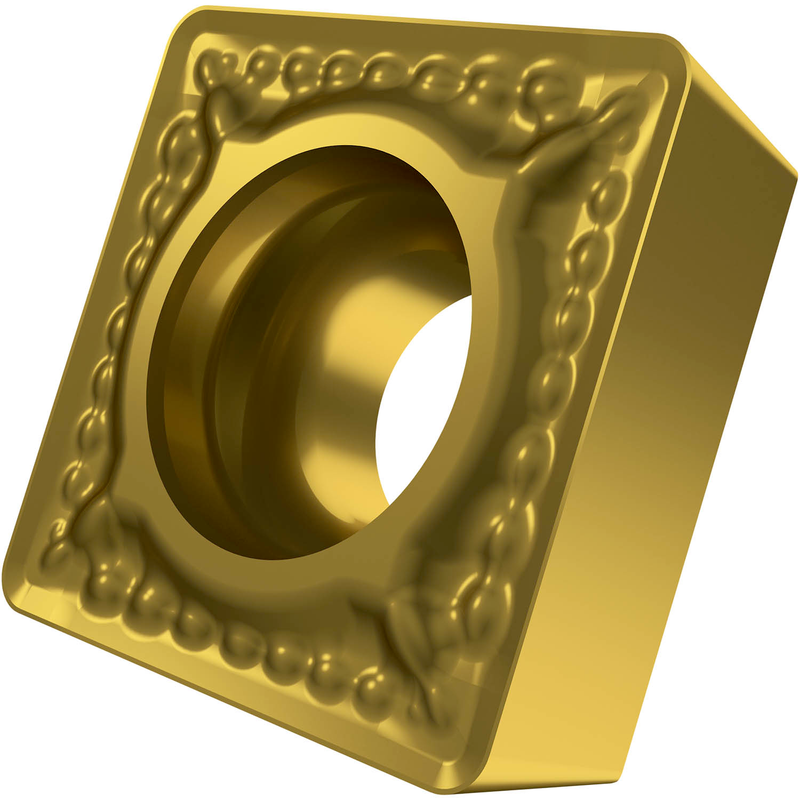

Plaquette de forage pour alésage périphérique de forets indexables PRAMET 80.D dans une plage de diamètres de 1,772 à 2,283", en carbure WC-Co à grains fins revêtu PVD D8330 dans les plages de nuances ISO P20-P35 et M15-M30 avec géométrie SD pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCET 150512-SD:D8330
GradeD8330
Chipbreaker (CBMD)DS
Product Number6920803
Product FamilySCET

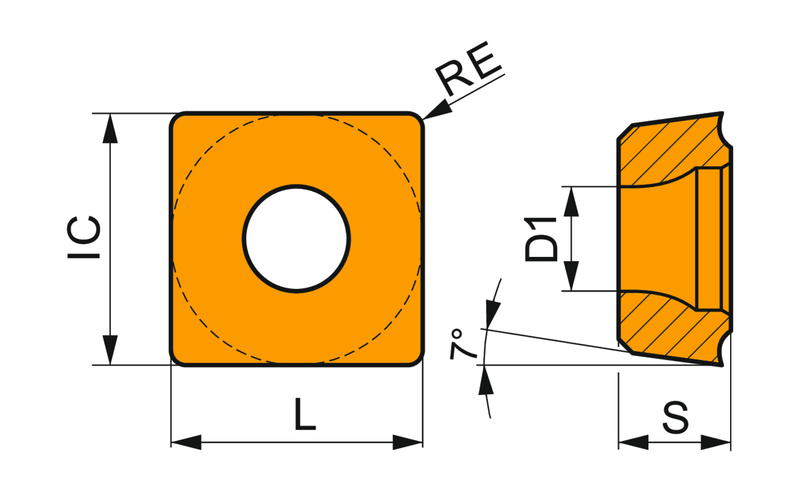

Insert Geometry
Insert DesignSCET
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number6920803
EAN3603603074255
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SCET 150512-SD:D8330 — 3D Model STP Download
SCET 150512-SD:D8330 — Line Drawing PDF Download
