XPET 0502AP-SD:D8345
XPET 0502AP-SD:D8345

XPET 0502AP-SD:D8345

UGC DOR6920805
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.40 CAD - $17.40 CAD
$17.40 CAD
$17.40 CAD - $17.40 CAD
$17.40 CAD

Vendu en lots de : 10

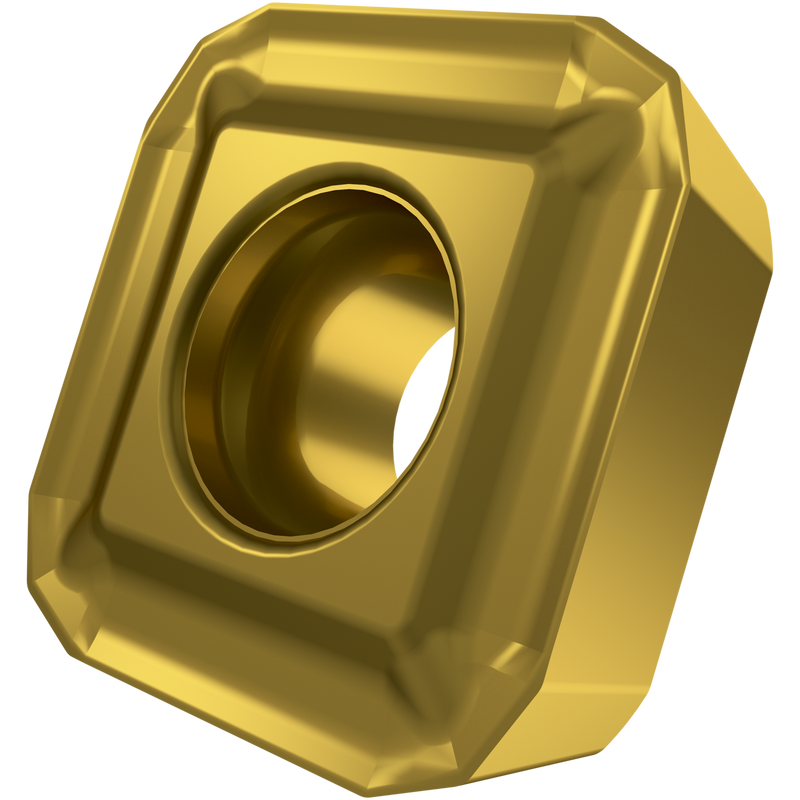

Plaquette de perçage pour adapter la poche centrale des forets indexables PRAMET 80.D dans une plage de diamètres de 15 mm (0,591") à 17 mm (0,669"), carbure WC-Co à grain fin revêtu PVD D8345 dans les plages de nuances ISO P30-P50 et M20-M40 avec géométrie SD pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPET 0502AP-SD:D8345
GradeD8345
Chipbreaker (CBMD)SD
Product Number6920805
Product FamilyXPET

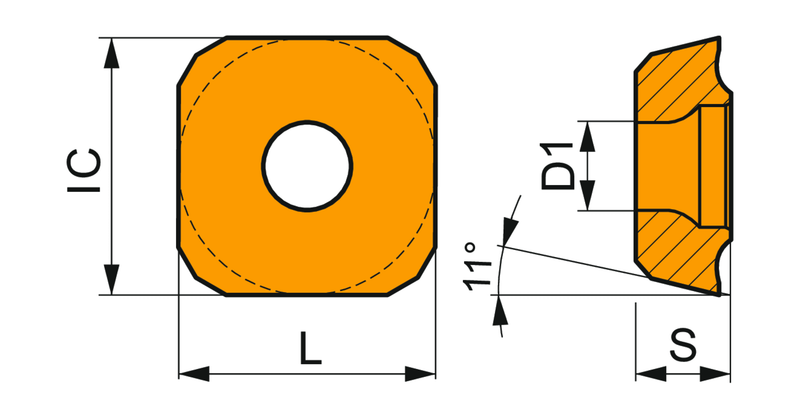

Insert Geometry
Insert DesignXPET
Insert Shape Code (SC)X - Special design
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Tool Information
Reference Numbers
EDP Number6920805
EAN3603603074279
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
XPET 0502AP-SD:D8345 — Line Drawing PDF Download
