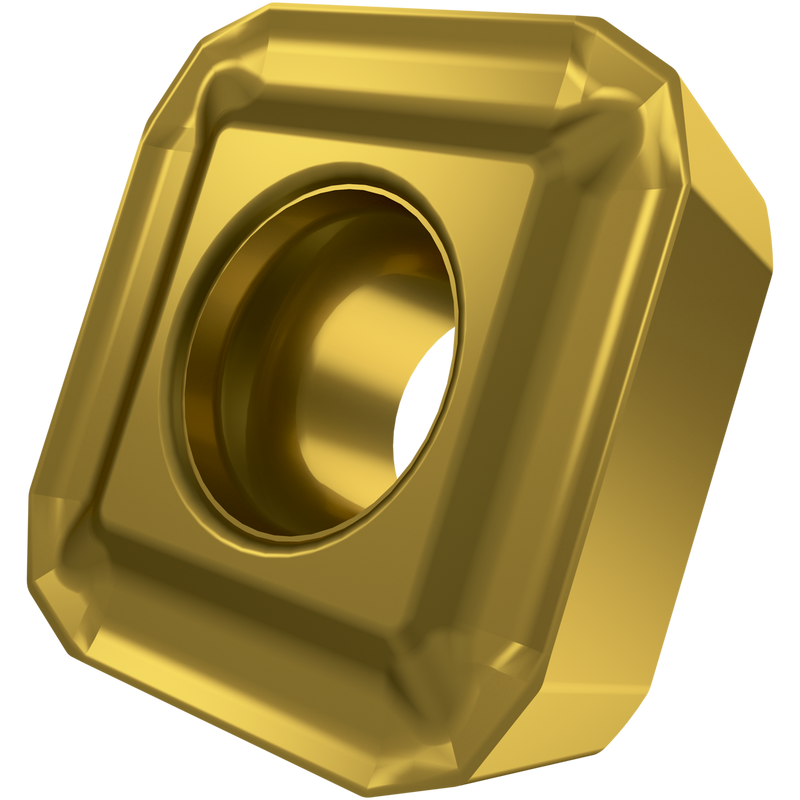

XPET 0703AP-SD:D8345
XPET 0703AP-SD:D8345

XPET 0703AP-SD:D8345

UGC DOR6920807
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.70 CAD - $19.70 CAD
$19.70 CAD
$19.70 CAD - $19.70 CAD
$19.70 CAD

Vendu en lots de : 10

Plaquette de perçage pour adapter la poche centrale des forets indexables PRAMET 80.D dans une plage de diamètres de 0,846 à 1,024", carbure WC-Co à grains fins revêtu PVD D8345 dans les plages de grades ISO P30-P50 et M20-M40 avec géométrie SD pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPET 0703AP-SD:D8345
GradeD8345
Chipbreaker (CBMD)DS
Product Number6920807
Product FamilyXPET
Insert Geometry
Insert DesignXPET
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.312"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Tool Information
Reference Numbers
EDP Number6920807
EAN3603603074293
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download

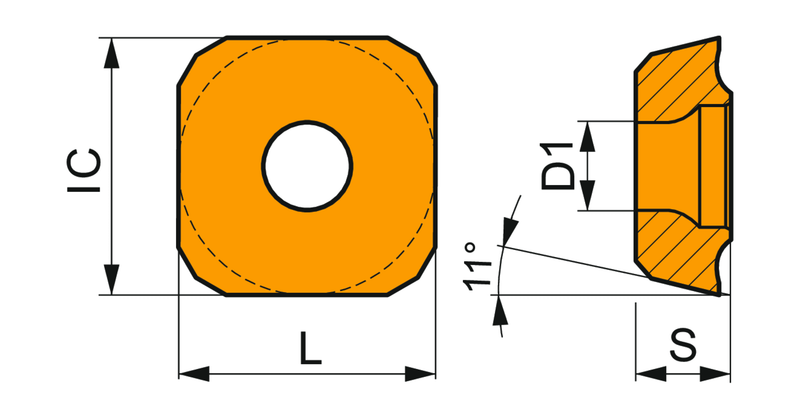

XPET 0703AP-SD:D8345 — Line Drawing PDF Download
