XPET 11T3AP-SD:D8345
XPET 11T3AP-SD:D8345

XPET 11T3AP-SD:D8345

UGC DOR6920809
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.20 CAD - $23.20 CAD
$23.20 CAD
$23.20 CAD - $23.20 CAD
$23.20 CAD

Vendu en lots de : 10

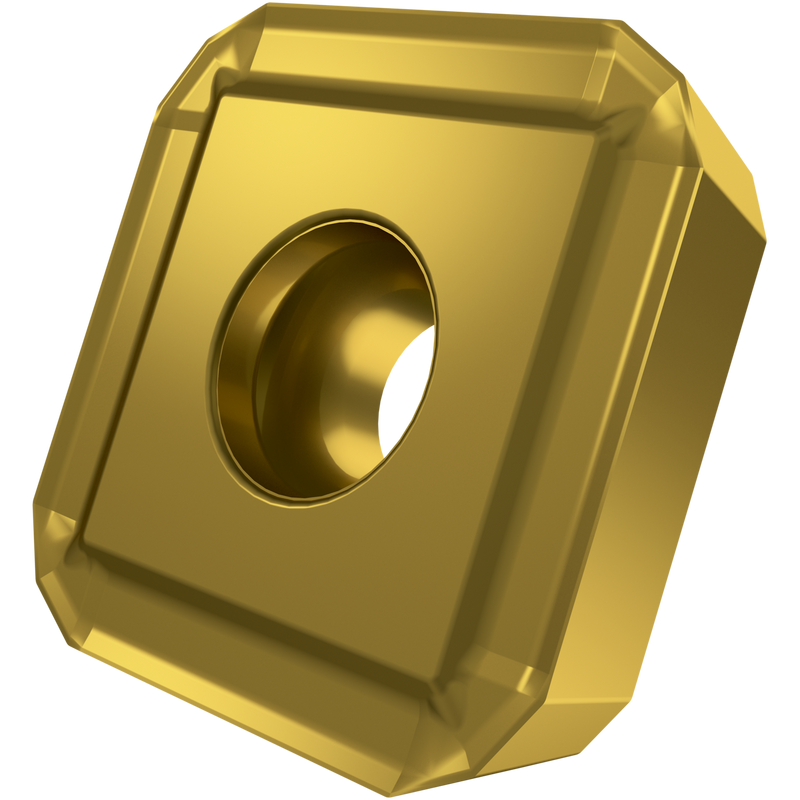

Plaquette de perçage pour s'adapter à la poche centrale des forets indexables PRAMET 80.D dans une plage de diamètres de 1,26 à 1,496", carbure WC-Co à grains fins revêtu PVD D8345 dans les plages de nuances ISO P30-P50 et M20-M40 avec géométrie SD pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPET 11T3AP-SD:D8345
GradeD8345
Chipbreaker (CBMD)DS
Product Number6920809
Product FamilyXPET
Insert Geometry
Insert DesignXPET
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.453"
Inscribed Circle Dia. — mm (IC)11.51 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number6920809
EAN3603603074316
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download

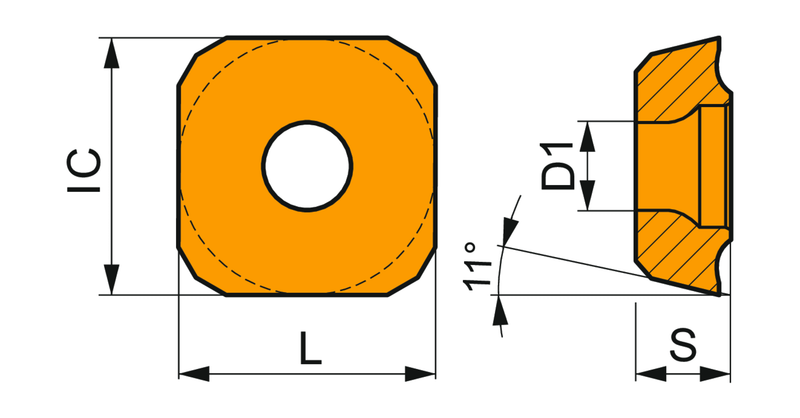

XPET 11T3AP-SD:D8345 — Line Drawing PDF Download
