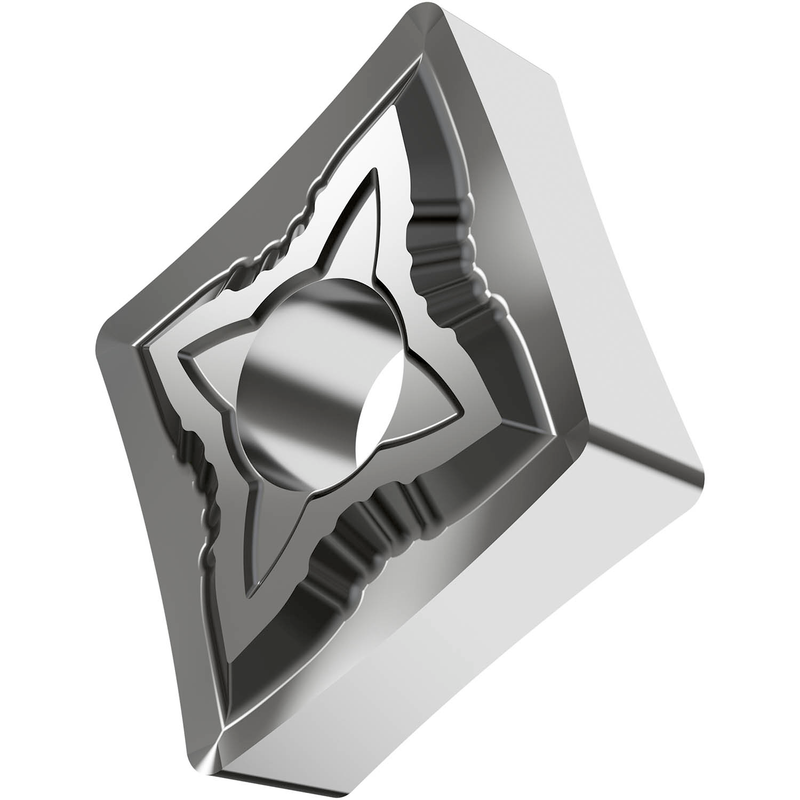

CNMG 431-SF:H07
CNMG 431-SF:H07

CNMG 431-SF:H07

UGC DOR6921012
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.54 CAD - $10.54 CAD
$10.54 CAD
$10.54 CAD - $10.54 CAD
$10.54 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SF, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO K10 - K25 et S01 - S20, pour l'usinage fin à moyen des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 431-SF:H07
Product Name (ISO)CNMG 120404E-SF:H07
GradeH07
Chipbreaker (CBMD)SF
Product Number6921012
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number6921012
EAN3603603074361
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
CNMG 431-SF:H07 — Line Drawing PDF Download
