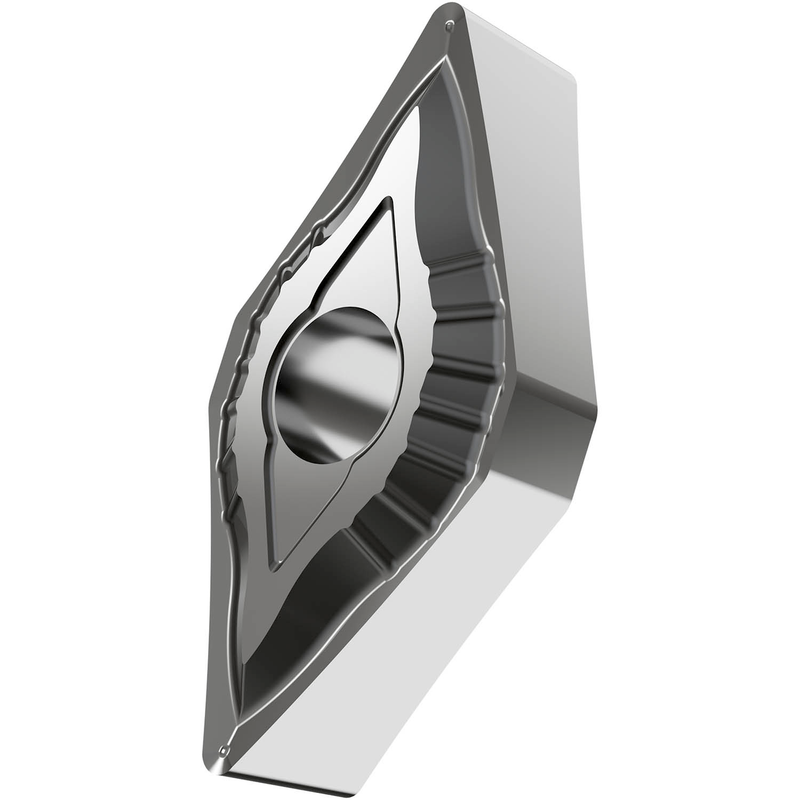

DNMG 441-SF:H07
DNMG 441-SF:H07

DNMG 441-SF:H07

UGC DOR6921014
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.71 CAD - $16.71 CAD
$16.71 CAD
$16.71 CAD - $16.71 CAD
$16.71 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec un diamètre de cercle inscrit de 1/2", 1/4" d'épaisseur, un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SF, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO K10 - K25 et S01 - S20, pour l'usinage fin à moyen des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441-SF:H07
Product Name (ISO)DNMG 150604E-SF:H07
GradeH07
Chipbreaker (CBMD)SF
Product Number6921014
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle interne rhomboïde de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6921014
EAN3603603074385
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
DNMG 441-SF:H07 — Line Drawing PDF Download
