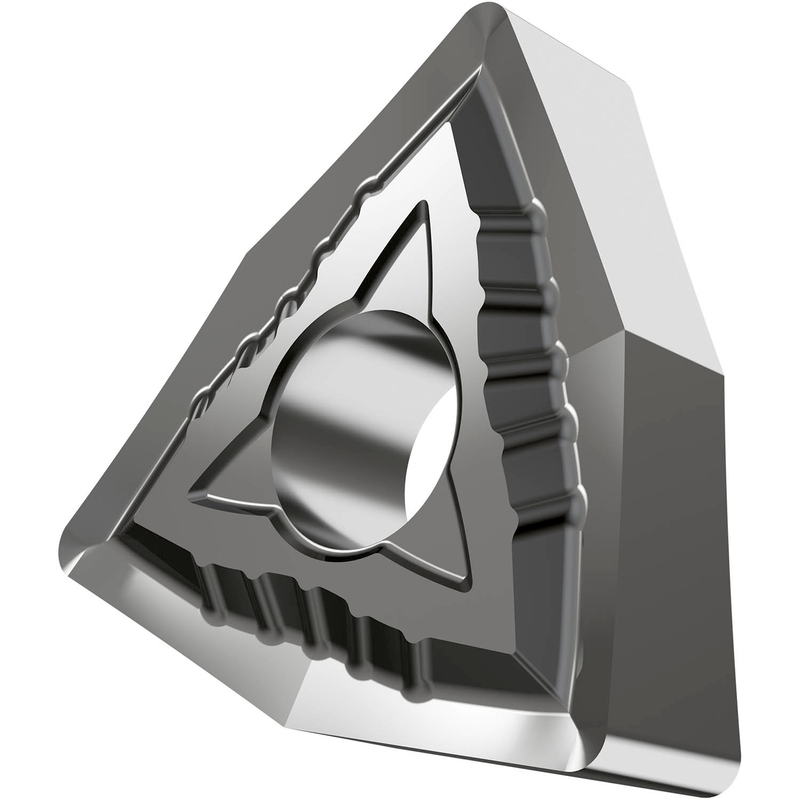

WNMG 432-SF:H07
WNMG 432-SF:H07

WNMG 432-SF:H07

UGC DOR6921022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.43 CAD - $10.43 CAD
$10.43 CAD
$10.43 CAD - $10.43 CAD
$10.43 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SF, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO K10 - K25 et S01 - S20, pour l'usinage fin à moyen des fontes et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 432-SF:H07
Product Name (ISO)WNMG 080408E-SF:H07
GradeH07
Chipbreaker (CBMD)SF
Product Number6921022
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6921022
EAN3603603074460
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
WNMG 432-SF:H07 — Line Drawing PDF Download
